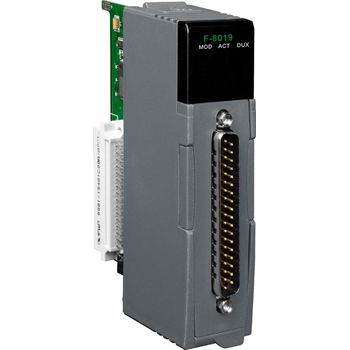

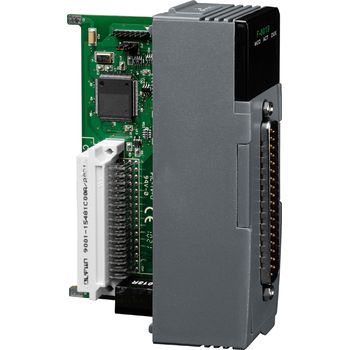

F-8019 CR ICP DAS Thermocouple IO Modules

• 8 thermocouple input channels
• User defined up/down scale
• Open wire detection
• RoHS compliance
• 3000 VDC isolation from output to backplane
• 3000 VDC isolation from output to frame ground
• Redundancy
• Fast redundant switching time (<100us)

INTRODUCTION

The F-8019 is a 16-bit, 8-channel thermocouple input module that features programmable input range on all channels. It measures millivolt input (±15mV, ±50mV, ±100mV, ±150mV, ±500mV), voltage input (±1V, ±2.5V, ±5V, ±10V) and thermocouple input (Type J, K, T, E, R, S, B, N, C). An external CJC is supported for accurate termperature measurement. Moreover, this module has ±0.05% accuracy for highly accurate application. Besides, the F-8019 provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.

APPLICATIONS

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

SPECIFICATIONS

Feature
Redundant: Yes (Switching time < 100us)
Over Voltage Protection: Yes
Resolution: Yes
Sampling Rate: Yes
Accuracy: 1 RUN, 1 ACT, 1 DUX

Thermocouple Input
Number of channels: 8
Type: ±15mV, ±50mV, ±100mV, ±150mV,
         ±500mV, ±1V, ±2.5V, ±5V, ±10V,
         Type J, K, T, E, R, S, B, N, C

Temperature Range:    J: -210 ~ +1200 °C

 K: -270 ~ +1372 °C

 T: -270 ~ +400 °C

 E: -270 ~ +1000 °C

 R: -50 ~ +1765 °C

 S: -50 ~ +1765 °C

 B: 0 ~ +1820 °C

 N: -270 ~ +1300 °C

 C: 0 ~ +2320 °C

Maximum Allowable Input Voltage: 120 VDC
Resolution: 16 bit
Sampling Rate: 8 Samples/sec (Total)
Accuracy: ±0.05% FSR
Zero Drift: ±0.5 μV/°C
Span Drift: ±20 ppm/°C
Common Mode Rejection: 106 dB
Normal Mode Rejection: 90 dB
Input Impedance: 10 MΩ
Data Range: -2500 ~ 12500
Isolation: 3000 VDC

Certification
EMC: EN61000-6-2, EN61000-6-4, IEC/EN 61000-4-2, IEC/EN 61000-4-4

General
Termination board: DN-TC-M
Maximum power consumption: 1.3 W
Operating temperature: -25°C ~ +75°C
Humidity: 5 ~ 95 % RH, Non-condensing
Weight: 300 g
Dimensions (W x L x H): 30 mm x 85 mm x 115 mm
