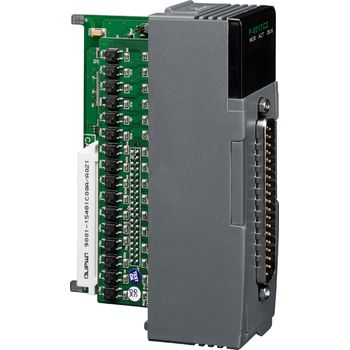

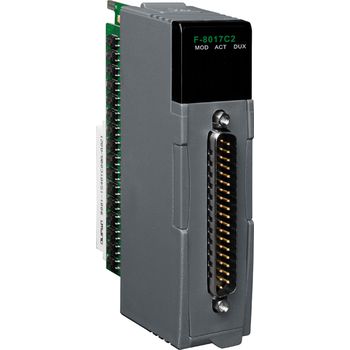

F-8017C2 CR ICP DAS Digital IO Modules

• 16 current input channels
• 1kHz sampling rate
• Overrange measurement
• RoHS compliance
• 3000 VDC isolation from input to backplane
• 3000 VDC isolation from input to frame ground
• Redundancy
• Fast redundant switching time (<100us)

INTRODUCTION

The F-8017C2 is a 16-bit, 16-channel analog differential input module. This module accepts current input range 4 ~ 20mA and supports 25% over range measurement (Accuracy is not guaranteed). Besides, it has ±0.05% accuracy for highly accurate application. Moreover, this module provides 1kHz sampling rate for some application. The F-8017C2 provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.

APPLICATIONS

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

SPECIFICATIONS

Feature
Redundant: Yes (Switching time < 100us)
Over-Current Protection: Yes
Termination board break off detection: Yes
LED indicator: 1 RUN, 1 ACT, 1 DUX

Analog Input
Number of channels: 16
Type: 4 ~ 20 mA (Support ±25% overrange)
Maximum Allowable Input Current: 25 mA
Resolution: 16 bit
Sampling Rate: 1k Samples/sec (Total)
Accuracy: ±0.05% FSR
Zero Drift: ±20 μV/°C
Common Mode Rejection: 86 dB
Normal Mode Rejection: 100 dB
Input Impedance: 230 Ω
Data Range: -2500 ~ 12500 (0~24mA)
Isolation: 3000 VDC

Certification
EMC: EN61000-6-2, EN61000-6-4, IEC/EN 61000-4-2, IEC/EN 61000-4-4

General
Termination board: DN-AIO-M
Maximum power consumption: 1.5 W
Operating temperature: -25°C ~ +75°C
Humidity: 5 ~ 95 % RH, Non-condensing
Weight: 300 g
Dimensions (W x L x H): 30 mm x 85 mm x 115 mm
