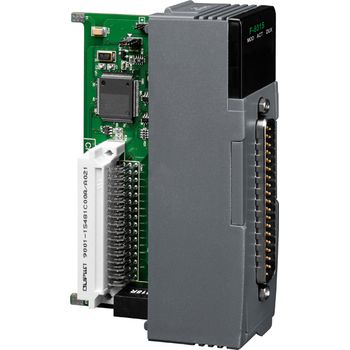

F-8015 CR ICP DAS RTD IO Modules

• 8 RTD input channels
• User defined up/down scale
• Open wire detection
• RoHS compliance
• 3000 VDC isolation from input to backplane
• 3000 VDC isolation from input to frame ground
• Redundancy
• Fast redundant switching time (<100us)

INTRODUCTION

The F-8015 is a 16-bit, 8-channel RTD input module that features programmable input range on all channels. This module has ±0.05% accuracy for highly accurate application. Besides, the F-8015 provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.

APPLICATIONS

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

SPECIFICATIONS

Feature
Redundant: Yes (Switching time < 100us)
Over Voltage Protection: Yes
Termination board break off detection: Yes
Open Wire Detection: Yes
LED indicator: 1 RUN, 1 ACT, 1 DUX

RTD Input
Number of channels: 8
Type: Pt-100: IEC 60751 ITS90 (0.03851 Ω/Ω/°C)
 JPt-100: JIS C 1604 (0.03916 Ω/Ω/°C)
 Pt-1000: IEC 60751 ITS90 (0.03851 Ω/Ω/°C)

Temperature Range: Pt100: -200 ~ +850
 JPt-100 , Pt1000: -200 ~ +630

Maximum Allowable Input Voltage: 120 VDC
Resolution: 16 bit
Sampling Rate: 8 Samples/sec (Total)
Accuracy: ±0.05% FSR (±250 mΩ)
Zero Drift: ±0.5 μV/°C
Span Drift: ±20 ppm/°C
Common Mode Rejection: 106 dB
Normal Mode Rejection: 90 dB
Input Impedance: 20 MΩ
Data Range: -2500 ~ 12500
Isolation: 3000 VDC

Certification
EMC: EN61000-6-2, EN61000-6-4, IEC/EN 61000-4-2, IEC/EN 61000-4-4

General
Termination board: DN-RTD-M
Maximum power consumption: 1 W
Operating temperature: -25°C~ +75°C
Humidity: 5 ~ 95 % RH, Non-condensing
Weight: 300 g
Dimensions (W x L x H): 30mm x 85mm x 115mm
