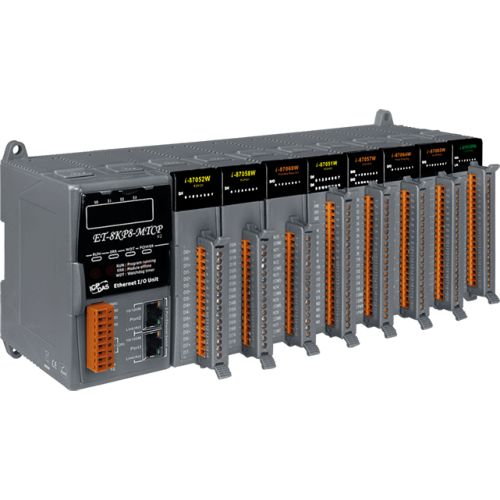

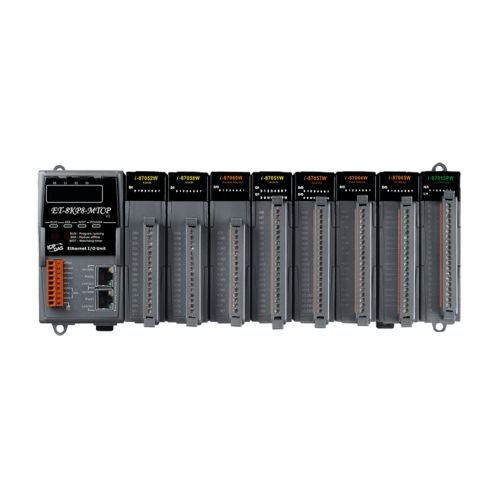

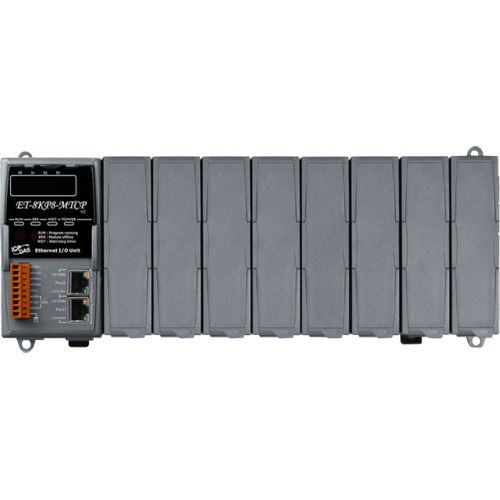

ET-8KP8-MTCP CR ICP DAS IO Expansion Unit

ET-8KP8-MTCP CR ICP DAS

ET-8KP8-MTCP CR

8-slot Intelligent Ethernet I/O Expansion Unit (Modbus TCP Protocol)

Quantity:

Price

€ 511,60

(VAT excluded)

€ 624,15(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 624,15

Availability: 15 business days

SKU: 118860

Model: ET-8KP8-MTCP CR

Need Help?


 Features

  • Two Ethernet Ports for Daisy-Chain Topology
  • Supports Modbus TCP
  • Supports Modbus RTU/ASCII
  • Supports Modbus TCP to RTU Gateway
  • Auto Configuration
  • 8 I/O Slots for I-8K and I-87K Series Modules


Introduction

ET-8KP8-MTCP series is a Modbus TCP I/O expansion unit to expand I-8K and I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports for daisy-chain topology. The daisy-chain feature allows ET-8KP8 to connect in series to each other or other Ethernet devices. Users can easily simplify the cabling and save installation space with the feature. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75 °C).

There are more than 90 I/O modules supported with the unit, including analog input/output, digital input/output, DI counter modules. To simplify installation and maintenance of I/O modules, it provides many useful features, such as: auto configuration, LED indicators for fault detection, CPU watchdog to keep proram alive, software watchdog to set safe values when communicaiotn is lost, programmable power on and safe values for safety. Modbus is a very wide known protocol in the industrial manufacturing and environment monitoring fields. Many SCADA software, HMI and PLC has builtin driver to support Modbus devices. Besides, we also provide SDK on different platforms, such as Windows XP, Window CE 5.0/6.0, Linux, MiniOS7. Therefore, it is very easy to integrate remote I/O to customer’s applications.


Specifications

Display

Type: 5 x Digit 7 Segment LED Display


LED Indicators

Status: 1 x Run, 1x Module offline, 1 x WDT, 1 x Power


I/O Expansion

I/O Type: I-87K, I-8K Series
Slots: 8


COM Ports

Ports: 1 x RS-232 (Console)
Protocol: Modbus RTU/ASCII Slave


HMI

Push Button: 4


Ethernet

Ports: 2 x RJ-45, 10/100 Base-TX
Protocol: Modbus TCP Slave, Modbus TCP to RTU Gateway


Power

Input Range: +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs: Yes
Consumption: 2.4 W


Mechanical

Dimensions (mm): 312 x 132 x 111 (W x L x H)
Installation: DIN-Rail, Wall mounting


Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90 % RH, Non-condensing
