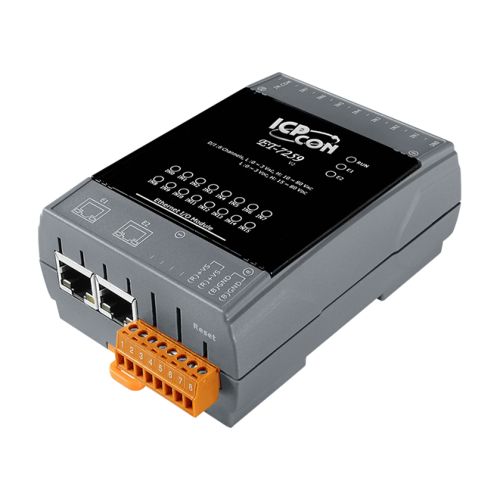

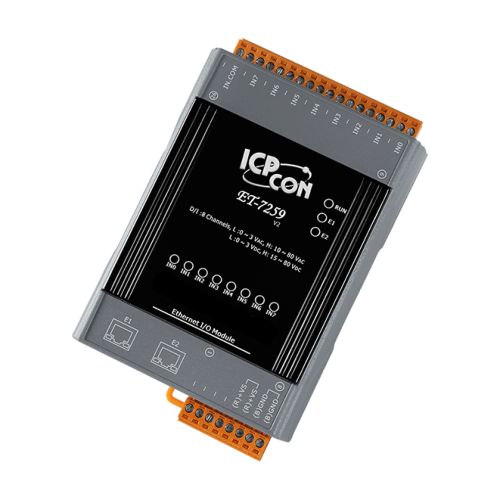

ET-7259 CR
Ethernet I/O Module with 2-port Ethernet Switch and 8-ch AC/DC Digital input
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 to +75°C
- Built-in I/O
- AC/DC Digital Input: 8 Channels
INTRODUCTION
The ET-7259/PET-7259 provides 8 AC/DC digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 2500 VDC of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.
Software
Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes
Communication
Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE: -
Protocol: Modbus TCP, Modbus UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 seconds), Communication (Programmable)
LED Indicators
for System Running: Yes
for Ethernet Link/Act: Yes
for DI/DO status: Yes
for PoE Power: -
2 Way Isolation
Ethernet: 1500 VDC -
I/O: 2500 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Power
Reverse Polarity Protection: Yes
Powered from Terminal Block: 12 ~ 48 VDC
Powered from PoE: -
Consumption: 2.3 W (Max.)
Mechanical
Dimensions (L x W x H): 120 mm x 76 mm x 38 mm
Installation: DIN-Rail or Wall mounting
Environmental
Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Humidity: 10 to 90% RH, Non-condensing
I/O Specification
AC Digital Input/Counter
Channels: 8
Contact Wet: Contact
Sink/Source (NPN/PNP): Sink/Source
On Voltage Level: 10 VAC ~ 80 VAC
15 VDC ~ 80 VDC
Off Voltage Level: 3 VAC Max.
3 VDC Max.
Input Impedance: 30 kΩ
Counters: Max. Count 4,294,967,285 (32 bits)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Overvoltage Protection: 120 VAC
