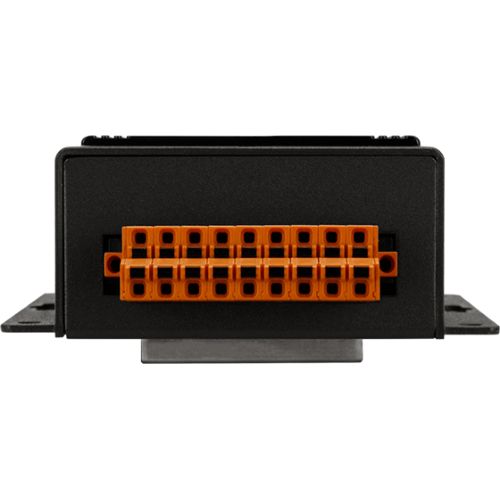

ET-7258M-16-UTA CR, Ethernet I/O Module with 2-port Ethernet Switch, with 16-channel Digital Input -40 to 75°C Operating Temperature
ET-7258M-16-UTA CR
Ethernet I/O Module with 2-port Ethernet Switch, with 16-channel Digital Input -40 to 75°C Operating Temperature
Free Shipping
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -40 ~ +75°C
- Built-in I/O
- AC/DC Digital Input: 16 Channels
Introduction
The ET-7258M-16-UTA provides 16 AC/DC digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 2500 VDC of transient over voltage protection but doesn't provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.
Specifications
Software
Built-in Web Server: Yes
CPU Module
Watchdog Timer: Module, Communication (Programmable)
Isolation
2-way Isolation: Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status: Run, Ethernet, I/O
Digital Input/Counter
Channels: 16
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: 80 to 250 VAC
±100 to ±250 VDC
OFF Voltage Level: 30 VAC (max.)
±30 VDC (max.)
Max. Counts: 4,294,967,295 (32-bit)
Frequency: 100 Hz
Min. Pulse Width: 5 ms
Input Impedance: 150 kΩ
Overvoltage Protection: 300 VAC
Ethernet
Ports: 2 x RJ-45, 10/100 Base-TX, Switch Ports
LAN bypass: Yes
Security: ID, Password and IP Filter
Protocol: Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection: Yes
Consumption: 2.8 W (max.)
Powered from Terminal Block: +12 to +48 VDC
Mechanical
Dimensions (mm): 97 x 130 x 38 (W x L x H)

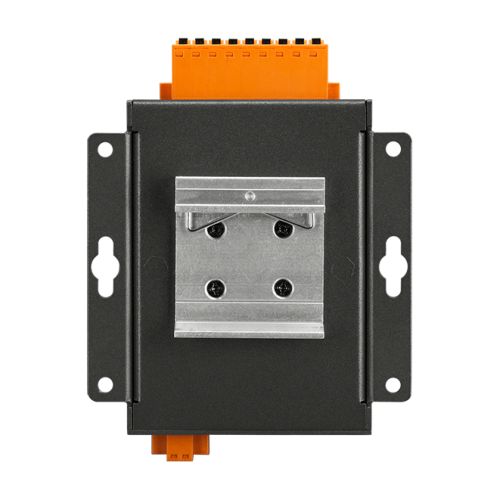

Installation: DIN-Rail mounting
Environment
Operating Temperature: -40 to +75°C
Storage Temperature: -30 to +80°C
Humidity: 10 to 90% RH, Non-condensing
