ET-7253 CR ICP DAS Digital IO Modules

• Built-In Web Server
• Web HMI
• Support fot both Modbus/TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75 °C
• I/O Pair Connection
• Built-In I/O
  • DI/Counter: 16 Channels

The ET-7053/PET-7053/ET-7253/PET-7253 provides 16 dry contact digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

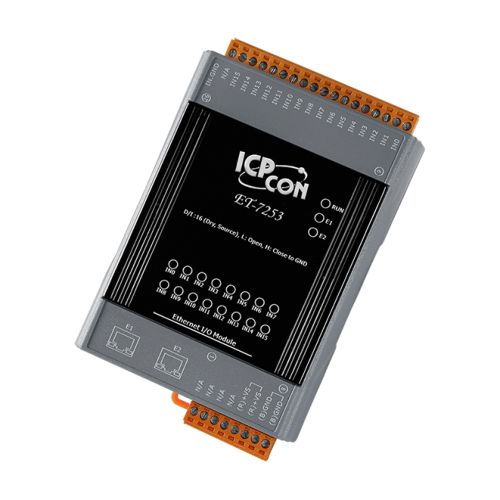

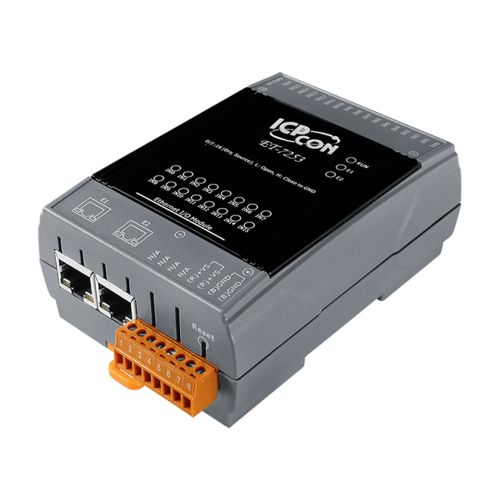

ET-7253 CR: Ethernet I/O Module with 2-port Ethernet Switch, with 16-ch DI (RoHS)

Software

Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Switch Ports
Protocol: Modbus/TCP, Modbus/UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)

LED Indicators

L1 (System Running): Yes
L2 (Ethernet Link/Act): Yes
L3 (DI/DO status): Yes

2 Way Isolaiton

Ethernet: 1500 VDC
I/O: 2500 VCD

EMS Protection

ESD (IEC 61000-4-2): 4 kV Contact for each terminal and 8 kV air for random point
EFT (IEC 61000-4-4): +/-4 kV for Power

Power Requirements

Reverse Polarity Protectionn: Yes
Powered from terminal block: Yes, 10 ~ 48 VDC
Consumption: 3.7 W

Mechanical

Dimensions (W x L x D): 76 mm x 120 mm x 38 mm
Installation: DIN-Rail or Wall mounting

Environment

Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing

Digital Input/Counter

Input Channels: 16
Type: Dry Contact (Source)
On Voltage Level Open
Off Voltage Level Close to GND
Counters:
         Max. Count 4,294,967,285 (32 bits)
         Max. Input: Frequency 100 Hz
         Min. Pulse Width 5 ms
Effective Distance 500 M max.
