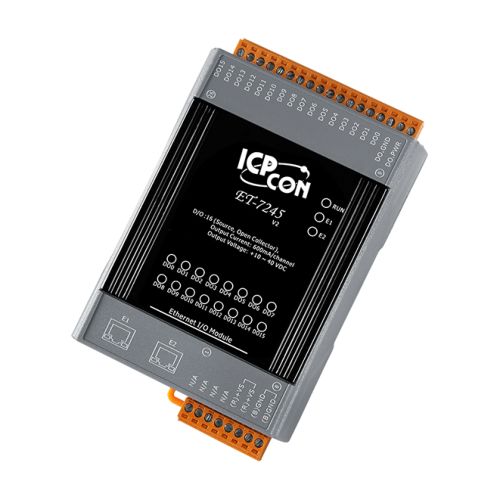

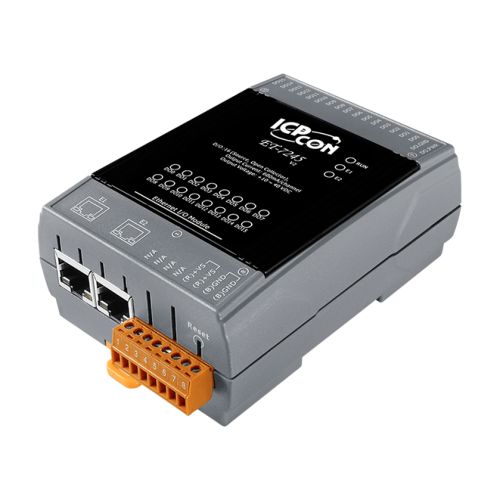

ET-7245 CR ICP DAS Digital IO Modules

• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• Wide Operating Temperature Range
  •  Standard Series: -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O
  •  Source-type DO: 16 Channels

INTRODUCTION

The ET-7245/PET-7245 provides 16 source-type digital output channels. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of digital output channelare programmable. In some industrial applications, the user can connect the output channel of ET-7245/PET-7245 to the RM series relay module to switch inductive loads.

SYSTEM SPECIFICATIONS

Software
Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication
Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE: -
Protocol: Modbus TCP, Modbus UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 seconds), Communication (Programmable)

LED Indicators
for System Running: Yes
for Ethernet Link/Act: Yes
for DI/DO status: Yes
for PoE Power: -

2 Way Isolation
Ethernet: 1500 VDC
I/O: 3750 VDC

EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power
Reverse Polarity Protection: Yes
Powered from Terminal Block: 12 ~ 48 VDC
Powered from PoE: -
Consumption 3.1 W (Max.)

Mechanical
Dimensions (L x W x H): 120 mm x 76 mm x 38 mm
Installation: DIN-Rail or Wall mounting

Environmental
Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Humidity: 10 to 90% RH, Non-condensing

I/O SPECIFICATION
Digital Output
Channels: 16
Type: Isolated Open Source
Sink/Source (NPN/PNP): Source
Max. Load Current: 600 mA/channel
Load Voltage: +10 VDC ~ +40 VDC
Overvoltage Protection: 47 VDC
Overload Protection: 1.4 A (with short-circuit protection)
Short-circuit Protection: Yes
Power-on Value: Yes, Programmable
Safe Value: Yes, Programmable
