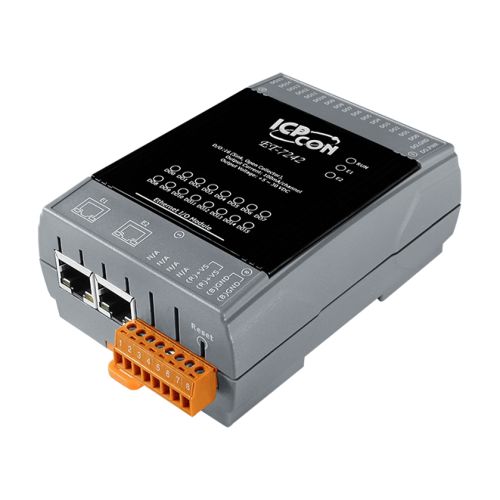

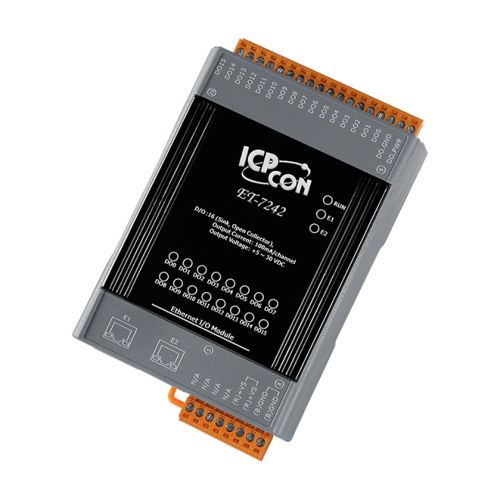

ET-7242 CR
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Digital output
- Built-In Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75 °C
- I/O Pair Connection
- Built-In I/O
- DO: 16 Channels
The ET-7042/PET-7042/ET-7242/PET-7242 provides 16 sink-type digital output channels. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of digital output channel are programmable. In some industrial applications, the user can connect the output channel of ET-7042/PET-7042/ET-7242/PET-7242 to the RM seriesrelay module to switch inductive loads.
ET-7242 CR: Ethernet I/O Module with 2-port Ethernet Switch, with 16-ch DO (RoHS)
Software
Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes
Communication
Ethernet Port: 2 x 10/100 Base-TX, Switch Ports
Protocol: Modbus/TCP, Modbus/UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
L1 (System Running): Yes
L2 (Ethernet Link/Act): Yes
L3 (for DI/DO status): Yes
2 Way Isolaiton
Ethernet: 1500 VDC
I/O: 3750 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4): +/-2 kV for Power
SURGE: ±2 kV for Power Line
Power Requirements
Reverse Polarity Protection: Yes
Powered from terminal block: Yes, 10 ~ 48 VDC
Consumption: 3.2 W
Mechanical
Dimensions (W x L x D): 76 mm x 120 mm x 38 mm
Installation: DIN-Rail or Wall mounting
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing
Digital Output
Output Channels: 16
Type: Isolated Open Collector (Sink)
Max. Load Current:
650 mA/channel at 25 °C
Direct drive power relay module
Load Voltage: +3.5 VDC ~ +50 VDC
Power On Value: Yes, Programmable
Safe Value: Yes, Programmable
