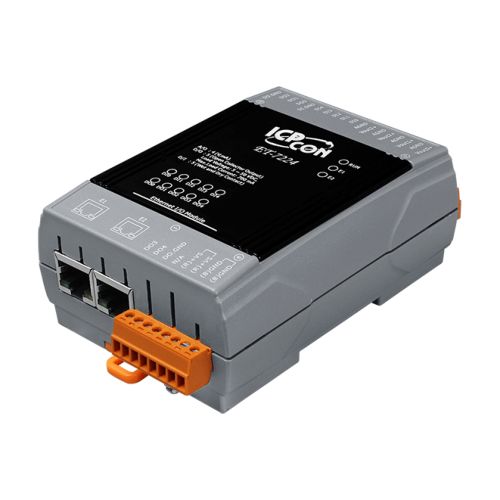

ET-7224 CR ICP DAS Digital IO Modules

ET-7224 CR ICP DAS

ET-7224 CR

Ethernet I/O Module with 2-port Ethernet Switch, 4-ch Analog output, 5-ch Digital input and 5-ch Digital output

Quantity:

Price

€ 338,56

(VAT excluded)

€ 413,04(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 413,04

Availability: 15 business days

SKU: 106361

Model: ET-7224 CR

Need Help?


The ET-7024/PET-7024/ET-7224/PET-7224 is a multifunction module includes 4 channels analog output, 5 channels digital input and 5 channels digital output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper. The ET-7024/PET-7024/ET-7224/PET-7224 is fully RoHS compliant and provides 4 kV ESD protection as well as 2500 VDC intra-module isolation.

ET-7224 CR : Ethernet I/O Module with 2-port Ethernet Switch, with 4-channels AO, 5-channels DI and 5-channels DO (RoHS)

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O - AO: 4 channels DI/Counter: 5 channels DO: 5 channels

System Specifications

Software

Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Switch Ports
Protocol: Modbus TCP, Modbus UDP
Security: ID, Password and IP Filter
I/O Pair Connection: Yes (Push, Polling)
Dual Watchdog: Yes, Module (0.8second), Communication (Programmable)

LED Indicators

For System Running: Yes
For Ethernet Link/Ack: Yes
For DI/DO status: Yes

2-way Isolation

Ethernet: 1500 VDC
I/O: 2500 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4):
±4 kV for Power Line
Surge (IEC 61000-4-5):±2 kV for Power Line

Power Requirements

Reverse Polarity Protection: Yes
Powered from Terminal block: +10 ~ +48 VDC
Consumption: 5.2 W (Max.)

Mechanism

Dimension: 76mm x 120mm x 38mm (W x L x  H)
Installation: DIN-Rail

Environment

Operating Temp: -25°C ~ +75°C
StorageTemp: -30℃ ~ 80℃
Humidity: 10 ~ 90% RH, Non-condensing

I/O Specifications

Analog Output

Channels: 4
Type: +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable)
Individual Channel Configuration: Yes
Resolution: 12-bit
Accuracy: +/-0.1% of FSR
Voltage Output Capability: 10 V @ 20 mA
Current Load Resistance: 500kΩ
Open Wire Detection: Yes, for 4 ~ 20 mA only
Power-on Value: Yes, Programmable
Safe Value: Yes, Programmable

Digital Input/Counter

Channels: 5
Dry Contact (Source):

On Voltage Level: Close to GND

Off Voltage Level: Open

Effective Distance for Dry Contact: 500 Meters Max.
Wet Contact (Sink Source)

On Voltage Level: +1 VDC Max.

Off Voltage: +3.5 VDC ~ +30 VDC
Input Impedance
Counter

Channels: 5

Max. Count: 4,294,967,295 (32-bit)

Max. Input: 100 Hz

Min. Pulse Width: 5 ms
Overvoltage Protection: 30 VDC

Digital Output

Channels: 5
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Sink
Max. Load Current: 600 mA/Channel
Load Voltage: +5 VDC ~ +50 VDC
Overvoltage Protection: 60 VDC
Overvoload Protection: 1.4 A

Short-circuit Protection: Yes
Power-on Value: Yes, Programmable
Safe Value: Yes, Programmable
