ET-7202 CR ICP DAS Analog IO Modules

ET-7202 CR ICP DAS

ET-7202 CR

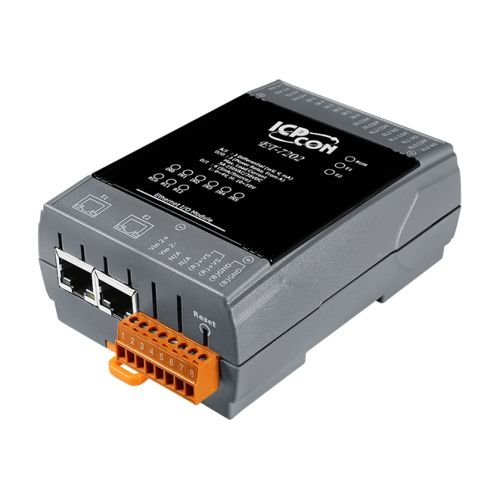

Ethernet I/O Module with 2-port Ethernet Switch, 3-ch Analog input, 6-ch Digital input and 3-ch Relay

Quantity:

Price

€ 343,82

(VAT excluded)

€ 419,46(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 419,46

Availability: 15 business days

SKU: 94216

Model: ET-7202 CR

Need Help?


The ET-7002/PET-7002/ET-7202/PET-7202 is a multi-function module with 3-channel analog inputs, 6-channel digital inputs and 3-channel relay outputs. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper. The ET-7002/PET-7002/ET-7202/PET-7202 is fully RoHScompliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

ET-7202 CR : Ethernet I/O Module with 2-port Ethernet Switch, with 3-ch AI, 6-ch DI, 3-ch Relay (RoHS)

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • I/O Pair Connection
  • Built-in I/O
    • AI: 3 Channels with 240 Vrms Overtvoltage Protection
    • DI/Counter: 6 Channels
    • Power Relay: 3 Channels

System Specifications

Software

Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Switch Ports
Protocol: Modbus TCP, Modbus UDP
Security: Password and IP Filter
Dual Watchdog: Yes, Module (0.8second), Communication (Programmable)

LED Indicators

For System Running: Yes
For Ethernet Link/Ack: Yes
for DI/DO status: Yes

2-way Isolation

Ethernet: 1500 VDC
I/O: 2500 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4):
±2 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power

Reverse Polarity Protection: Yes
Powered from Terminal block: +10 ~ +48 VDC
Consumption: 3.8 W

Mechanism

Dimension: 123mm x 72mm x 38mm (L x W x H)
Installation: DIN-Rail or Wall mounting

Environment

Operating Temp: -25°C ~ +75°C
StorageTemp: -30℃ ~ 80℃
Humidity: 10 ~ 90% RH, Non-condensing

I/O Specifications

Analog Input

Channels: 3 (Differential)
Type: +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (jumper selectable)
Individual Channel Configuration: Yes
Resolution: 16-bit
Sampling Rate Normal Mode 10 Samples/Second (Total) - Fast Mode 50 Samples/Second (Total)
Accuracy Normal Mode +/-0.1% - Fast Mode +/-0.5% or better

Zero Drift: +/-20 μV/°C
Span Drift: +/-25 ppm/°C
Overvoltage Protection: 240 Vrms
Overcurrent Protection: 50 mA max. at 110 VDC/VAC max
Input Impedance Voltage 2 MΩ - Current 125 Ω
Common Mode Rejection:  86 dB Min.
Normal Mode Rejection:  100 dB
Open Wire Detection:  Yes, for 4 ~ 20 mA only
Virtual Channel to Channel Isolation:  +/-400 VDC
