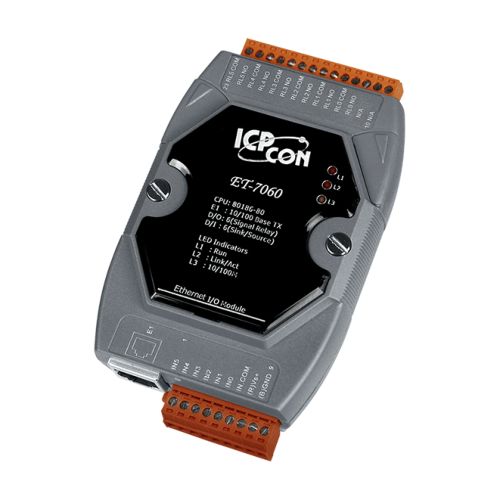

ET-7060 CR ICP DAS Relay Module

ET-7060 CR ICP DAS

ET-7060 CR

Ethernet I/O Module with 6-ch Power Relay and 6-ch DI

Quantity:

Price

€ 179,81

(VAT excluded)

€ 219,37(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 219,37

Availability: 15 business days

SKU: 3965

Model: ET-7060 CR

Need Help?


  • PoE and Regular Ethernet Options
  • Built-In Web Server
  • Web HMI
  • Modbus/TCP, Modbus/UDP Protocol
  • Communication Security
  • Dual Watchdog
  • Operating Temperature: -25 ~ +75 °C
  • I/O Pair Connection
  • Built-In I/O
    • DI/Counter: 6 Channels
    • Power Relay: 6 Channels

The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.
Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

Software

Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes

Communication

Ethernet Port: 10/100 Base-TX with Auto MDI/MDI-X
Protocol: Modbus/TCP, Modbus/UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)

LED Indicators

L1 (System Running): Yes
L2 (Ethernet Link/Act): Yes
L3 (Ethernet 10/100 M Speed): Yes

2 Way Isolaiton

Ethernet: 1500 VDC
I/O: 3000 Vrms

EMS Protection

ESD (IEC 61000-4-2): 4 kV Contact for each terminal
EFT (IEC 61000-4-4): +/-2 kV for Power

Power Requirements

Reverse Polarity Protectionn: Yes
Powered from terminal block: Yes, 10 ~ 30 VDC
Consumption: 2.9 W

Mechanical

Dimensions (W x L x D): 72 mm x 123 mm x 35 mm
Installation: DIN-Rail or Wall mounting

Environment

Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing

Digital Input/Counter

Input Channels: 6
Type: Wet Contact (Sink, Source)
On Voltage Level: +10 VDC ~ +50 VDC
Off Voltage Level: +4 VDC max.
Input Impedance: 10 kΩ
Counters: Max. Count: 4,294,967,285 (32 bits)
Max. Input: Frequency: 500 Hz
Min. Pulse Width: 1 ms
Overvoltage Protection: +70 VDC

Power Relay

Output Channels: 6
Type: Power Relay, Form A (SPST N.O.)
Operating Voltage Range: 250 VAC/30 VDC
Max. Load Current: 5.0A/channel at 25 °C
Operate Time: 6 ms (Typical)
Release Time: 3 ms (Typical)
Electrical Life (Resistive Load):
                              VDE:
                                5A 250 VAC 30,000 ops (10 ops/minute) at 75 °C
                                5A 30 VDC 70,000 ops (10 ops/minute) at 75 °C
                              UL:
                                5A 250 VAC/30 VDC 6,000 ops.
                                3A 250 VAC/30 VDC 100,000 ops.
Mechanical Life: 20,000,000 ops. at no load (300 ops./minute)
Power On Value: Yes, Programmable
Safe Value: Yes, Programmable
