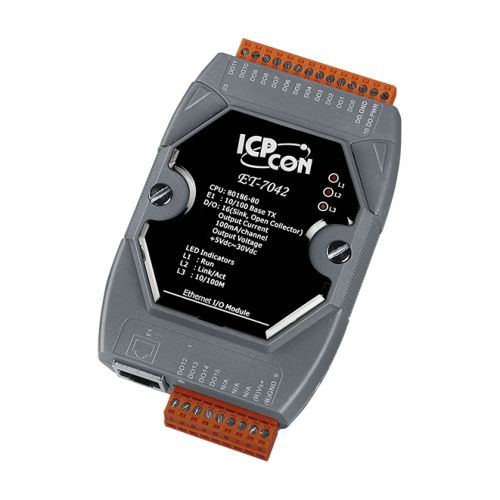

ET-7042 CR
Ethernet I/O Module with 16-ch DO
- PoE and Regular Ethernet Options
- Built-In Web Server
- Web HMI
- Modbus/TCP, Modbus/UDP Protocol
- Communication Security
- Dual Watchdog
- Operating Temperature: -25 ~ +75 °C
- I/O Pair Connection
- Built-In I/O
- DO: 16 Channels
The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.
Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.
Software
Built-In Web Server: Yes
Web HMI: Yes
I/O Pair Connection: Yes
Communication
Ethernet Port: 10/100 Base-TX with Auto MDI/MDI-X
Protocol: Modbus/TCP, Modbus/UDP
Security: ID, Password and IP Filter
Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
L1 (System Running): Yes
L2 (Ethernet Link/Act): Yes
L3 (Ethernet 10/100 M Speed): Yes
2 Way Isolaiton
Ethernet: 1500 VDC
I/O: 3750 Vrms
EMS Protection
ESD (IEC 61000-4-2): 4 kV Contact for each terminal
EFT (IEC 61000-4-4): +/-2 kV for Power
Power Requirements
Reverse Polarity Protection: Yes
Powered from terminal block: Yes, 10 ~ 30 VDC
Consumption: 2.7 W
Mechanical
Dimensions (W x L x D): 72 mm x 123 mm x 35 mm
Installation: DIN-Rail or Wall mounting
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing
Digital Output
Output Channels: 16
Type: Isolated Open Collector (Sink)
Max. Load Current:
100 mA/channel at 25 °C
Direct drive power relay module
Load Voltage: +5 VDC ~ +30 VDC
Power On Value: Yes, Programmable
Safe Value: Yes, Programmable
