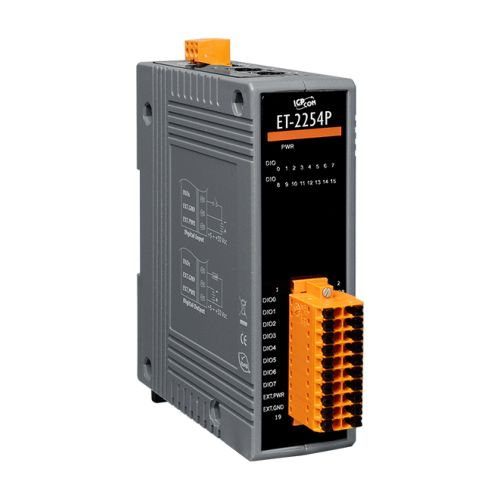

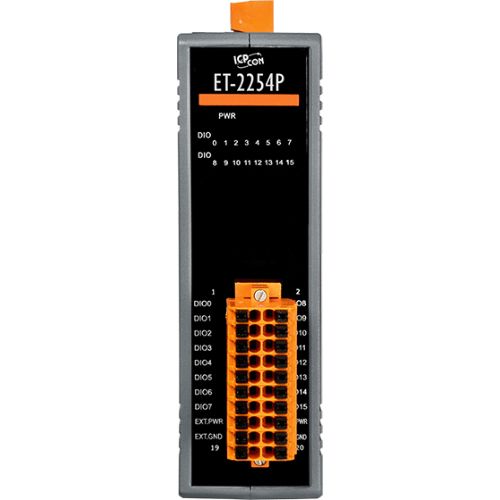

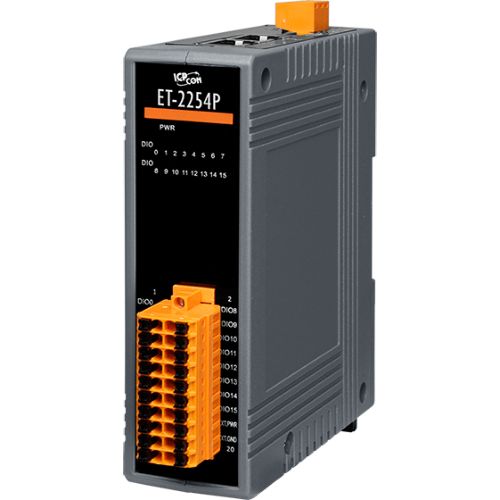

ET-2254P CR ICP DAS Digital IO Modules


ET-2254P CR

Ethernet I/O Module with 2-port Ethernet Switch and 16-ch Universal DIO (DO Max. Load Current: 350 mA)



€ 210,66

(VAT excluded)

€ 257,01(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 257,01

Availability: 15 business days

SKU: 106638

Model: ET-2254P CR

Need Help?

Providing a variety of digital I/O functions, the ET-2254(P) module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industrial applications, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2254(P) module being perfectly integrated with the HMI, SCADA, PLC or other software systems.
The ET-2254(P) provides 16-channel Universal DIO. Each I/O port can be configured as DI or DO port. The ET-2254 provides Digital Output channel can drive 100 mA load, while the ET-2254P provides Digital Output channel can drive 400 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2254(P) allows daisy chain connection which enables flexibility in locating devices; easy installation and lower infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3750 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2254(P) module can continuously poll the status of the local DI channels and then write to the remote DO devices via the Modbus/TCP protocol.
It is equipped with removable terminal block connector for easy and robust wiring in industrial applications, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
ET-2254P CR: Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Universal DIO (DO Max. Load Current: 350 mA) (RoHS)

  • Built-in Web Server
  • Support Modbus TCP/UDP Protocols
  • Powerful 32-bit MCU Handles Efficient Network Traffic
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • I/O Pair Connection (Push and Polling)
  • Supports web configuration and firmware update via Ethernet
  • 16 channels of Universal DIO
  • Provide Digital Output Maximum Load Current:
    • ET-2254: 100 mA/Channel
    • ET-2254P: 350 mA/Channel
  • LED Display to Indicate the I/O status
  • Bi-direction Universal DIO Ports under software control
  • Wide Operating Temperature Range: -25 ~ +75 °C


CPU: 32-bit ARM

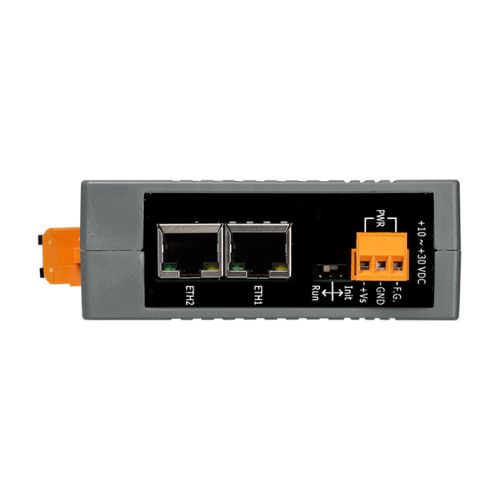

Ethernet Port: 2 x RJ-45, 10/100 Base-Tx, Switch Ports
Protocol: Modbus TCP, Modbus UDP
Security: Password and IP Filter
I/O Pair Connection: Yes (Push, Polling)
Dual Watchdog: Yes, Module, Communication (Programmable)
LAN Bypass: Yes

LED Indicators

For System Running: Yes
For Ethernet Link/Ack: Yes
For DI/DO status: Yes

2-way Isolation

Ethernet: 1500 VDC
I/O: 3750 VDC

EMS Protection

ESD (IEC 61000-4-2): ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±3 kV for Power Line

Power Requirements

Reverse Polarity Protection: Yes
Powered from Terminal Block: +10 ~ +30 VDC
Consumption: 3.3 W (Max.)


Dimensions (L x W x H): 127 mm x 33 mm x 99 mm
Installation: DIN-Rail or Wall mounting


Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, Non-condensing

I/O Specifications

I/O Type: By Wire Connection, Configurable Universal DIO
I/O Channels: 16

Digital Input

Type: Dry Contact
Sink/Source (NPN/PNP): Source
On Voltage Level: Close to GND
Off Voltage Level: Open
Input Impedance: 7.5 kΩ, 1 W
Max. Count: 4,294,967,295 (32-bit)
Max. Input Frequency: 2.5 kHz
Programmable Digital Filter: 1 ~ 6500 ms (0.08 Hz ~ 500 Hz)

Digital Output

Type: Open-collector (Sink)
Sink/Source (NPN/PNP): Sink
Max. Load Current: 350 mA/channel
Load Voltage: +5 VDC to +50 VDC
Short Circuit Protection: Yes
Power-on Value: Yes, Configurable
Safe Value: Yes, Configurable
