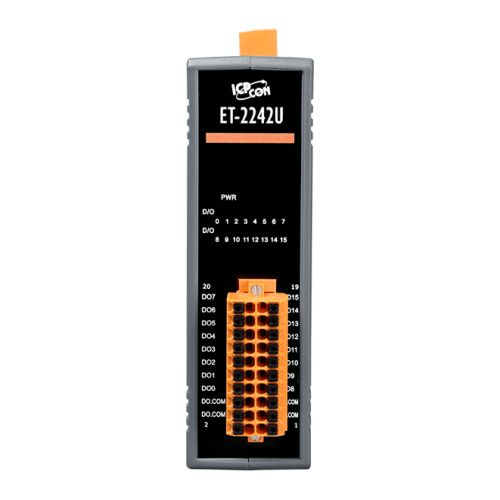

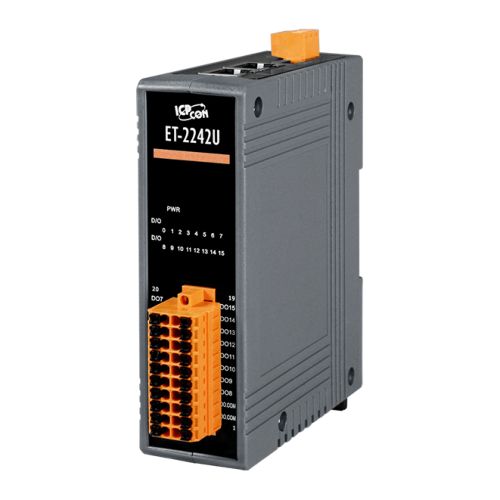

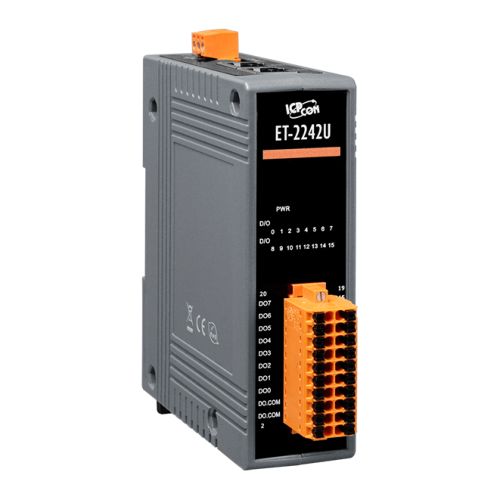

ET-2242U CR ICP DAS Digital IO Modules

• Built-in Web Server
• Support Modbus TCP/UDP Protocols
• Powerful 32-bit MCU Handles Efficient Network Traffic
• 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
• Dual Watchdog
• I/O Pair Connection (Push and Polling)
• Easy Firmware Update via Ethernet
• LED Display to Indicate the I/O status
• 16-ch digital output selectable as either sink- or source-type
• via wire connection
• Wide Operating Temperature Range: -25 ~ +75°C

INTODUCTION

The ET-2242U provides 16 sink- or source-type Digital Output channels by wire connection and each channel can drive 500 mA load. There are
configurable power-on and safe values for digital output. With 2 Ethernet ports, the ET-2242U allows daisy chain connection which permits the
flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and
3000 VDC I/O isolation to enrich the noise protection ability for industrial environment.


System

CPU: 32-bit ARM

Communication

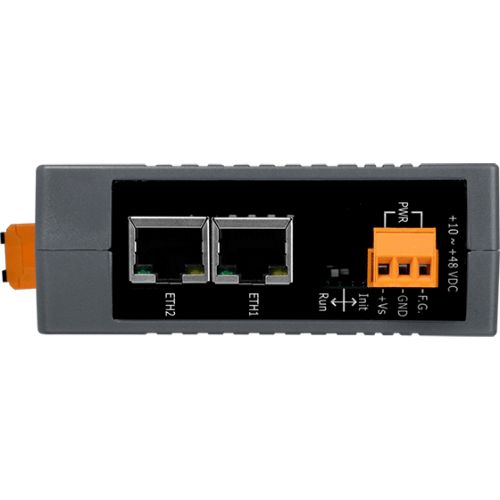

Ethernet Port: 2 x RJ-45, 10/100 Base-TX, Swtich Ports
Protocol: Modbus TCP, Modbus UDP
Security: Password and IP Filter
I/O Pair Connection: Yes (Push, Polling)
Dual Watchdog: Yes, Module, Communication (Configurable)
LAN Bypass: Yes

LED Indicators

System Running: Yes
Ethernet Link/Act: Yes
DI/DO status: Yes

2-Way Isolation

Ethernet: 1500 VDC
I/O: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±8 kV Contact for Each Terminal and ±15 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±2 kV for Power Line

Power

Reverse Polarity Protection: Yes
Powered from Terminal Block: +10 ~ +48 VDC
Consumption:   24 VDC: 2.3 W (Max.)
                          48 VDC: 2.6 W (Max.)

Mechanical

Dimensions (L x W x H): 127 mm x 33 mm x 99 mm
Installation: DIN-Rail Mounting

Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, Non-condensing
