ET-2242 CR ICP DAS Digital IO Modules

Providing various digital I/O functions, the ET-2242 module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2242 module perfect integration with the HMI, SCADA, PLC and other software systems.
The ET-2242 provides 16 Digital Output channels, each of which features photo couple isolation. The ET-2242 supports sink type output with short circuit protection and each channel can drive 650 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2242 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3750 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2242 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.
It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.

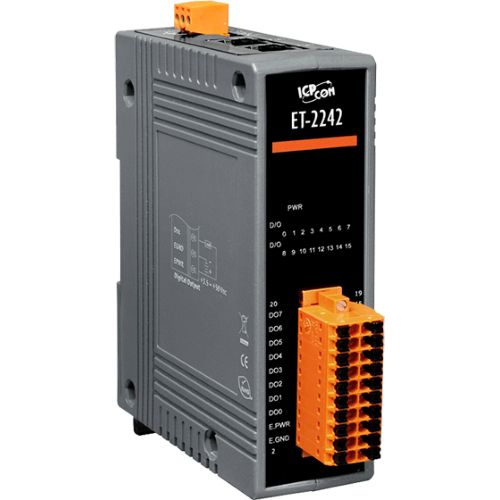

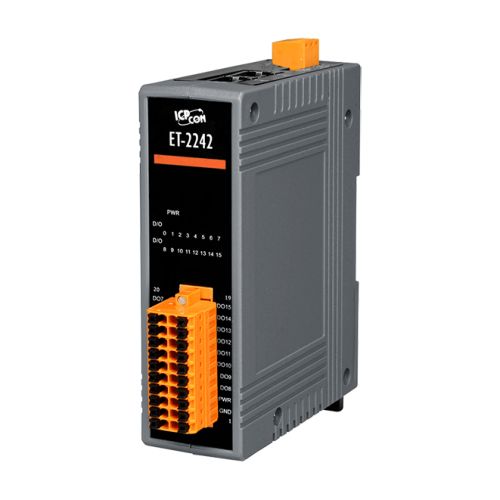

ET-2242 CR: Ethernet I/O Module with 2-port Ethernet Switch, 16-ch Open Collector Digital Output (RoHS)

• Built-in Web Server
• Support Modbus TCP/UDP Protocols
• Powerful 32-bit MCU Handles Efficient Network Traffic
• 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
• Dual Watchdog
• I/O Pair Connection (Push and Polling)
• Supports web configuration and firmware update via Ethernet
• 16 open collector digital output channels
• LED Display to Indicate the I/O status
• Wide Operating Temperature Range: -25 ~ +75 °C

System

CPU: 32-bit ARM

Communication

Ethernet Port: 2 x RJ-45, 10/100 Base-Tx, Switch Ports
Protocol: Modbus TCP, Modbus UDP
Security: Password and IP Filter
I/O Pair Connection: Yes (Push, Polling)
Dual Watchdog: Yes, Module, Communication (Programmable)
LAN Bypass: Yes

LED Indicators

For System Running: Yes
For Ethernet Link/Ack: Yes
For DI/DO status: Yes

2-way Isolation

Ethernet: 1500 VDC
I/O: 3750 VDC

EMS Protection

ESD (IEC 61000-4-2): ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±3 kV for Power Line

Power Requirements

Reverse Polarity Protection: Yes
Powered from Terminal Block: +10 ~ +30 VDC
Consumption: 3.2 W (Max.)

Mechanical

Dimensions (L x W x H): 127 mm x 33 mm x 99 mm
Installation: DIN-Rail or Wall mounting

Environmental

Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 90% RH, Non-condensing

Digital Output

Channels: 16
Type: Open Collector
Sink/Source: Sink
Load Voltage: +3.5 VDC ~ +50 VDC
Max. Load Current: 650 mA/Channel
Overload Protection: 1.4 A (with short-circuit protection)
Overvoltage Protection: +60 VDC
