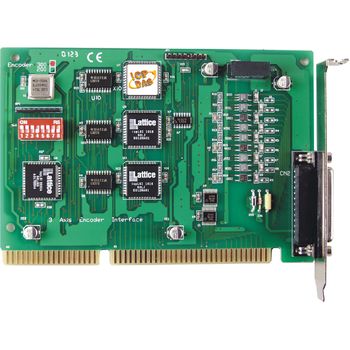

Encoder-300 CR
ISA Bus, 3-axis Encoder Interface Card Include: CA-PC25M (25-pin Male D-Sub Connector with Plastic Cover)
- Accepts Inputs from Incremental or Quadrature Encoders
- 3 Independent Axis
- Max. Quadrature Input Frequency: 1 MHz
- Counts per Encoder CyTO cle: X1, X2, X4 (Software selectable)
- Encoder Input Modes: Quadrature , Up/Down , Pulse/Direction
The ENCODER300 is a 3-axis quadrature encoder interface board for the IBM PC/AT bus compatibles. For each encoder, phase 0, phase 90 and index pulse inputs are provided. Inputs may be single ended (A,B,C) or differential (A+, A-, B+, B-, C+,C-). power and ground connections are provided for encoder use if nedded. Inputs are conditioned by a four-stage digital filters. The maximum input rate in quadrature decode mode is 1 MHz. The conditioned input are applied to a 16-bit counter. The counter may be used for quadrature decoding, pules- and direction-input counting, or as a pulse input up/ down counter.
General
Number of Axis: 3
Slot Interface: ISA Bus
Encoder Type: Single-ended or differential
Logic Levels: TTL, CMOS compatible
Resolution: 16 bit
Mode: Quadrant, CW_CCW, PULSE_DIR
Maixmum Rate: 1 MHz
Connector: 25-Pin D-sub
Power Consumption: +5 V @ 500 mA
Environmental
Operating Temperature: 0 ~ +60 °C
Storage Temperature: -20 ~ +80 °C
Ambient Relative Humidity: 0 ~ 90 % RH, condensing
