features and benefits
The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol.
Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise.
The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs.
All the modules can be deployed in the network topologies such as star, line or ring.
The isolation design protects the EIP-2000 against the harmful interference.

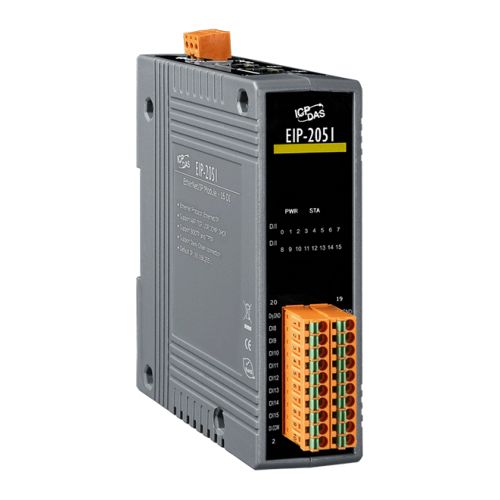

The EIP-2051 is a remote digital input module with 16 inputs.
It is designed as an EtherNet/IP adapter.
Users can obtain the input status as well as the connection status of the EIP-2051 by the LEDs indication.
In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.
- Transfer protocol: EtherNet/IP
- Powerful 32-bit MCU handles efficient network traffic

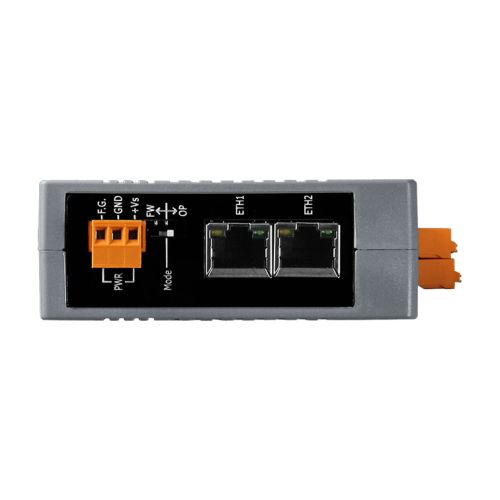

- 10/100 Base-TX Ethernet, RJ-45 x 2, (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
- Easy firmware update via Ethernet
- Removable terminal block connector
- Built-in I/O, DI/Counter: 16 Channels
specifications
Digital Input/Counter| Channels | 16 |
|---|
| Type | Wet Contact/Dry Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | +5 VDC ~ +50 VDC |
|---|
| OFF Voltage Level | +1 VDC Max. |
|---|
| Max. Counts | 32-bit (4294967295) |
|---|
| Frequency | 3 kHz |
|---|
| Input Impedance | 7.5 k? |
|---|
| Overvoltage Protection | +70 VDC |
|---|
Ethernet| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 | Support daisy chain connection. |
|---|
| Protocol | Ethernet/IP (Adapter) |
|---|
Power| Consumption | Non-RevB: 1.6W ; RevB: 2.9W Max |
|---|
Mechanical| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
|---|
| Installation | DIN-Rail |
|---|
Environment| Operating Temperature | -25°C ~ +75°C |
|---|
| Storage Temperature | -30°C ~ +80°C |
|---|
