features and benefits
The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol.
Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise.
The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs.
All the modules can be deployed in the network topologies such as star, line or ring.
The isolation design protects the EIP-2000 against the harmful interference.

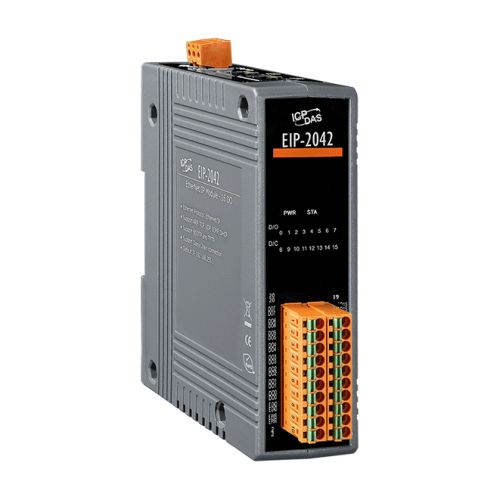

The EIP-2042 is a remote digital output module with 16 outputs.
It is designed as an EtherNet/IP adapter.
Users can obtain the output status as well as the connection status of the EIP-2042 by the LEDs indication.
In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.
- Transfer protocol: EtherNet/IP
- Powerful 32-bit MCU handles efficient network traffic

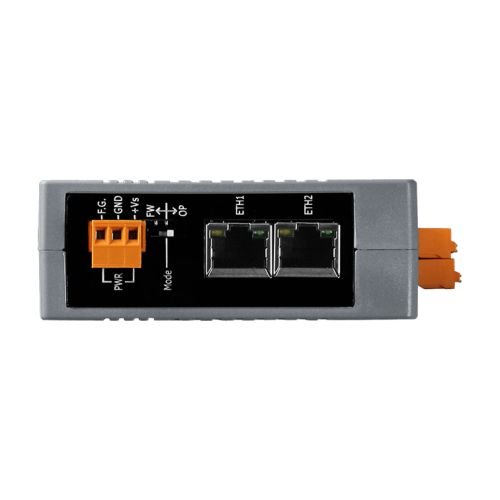

- 10/100 Base-TX Ethernet, RJ-45 x 2, (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
- Easy firmware update via Ethernet
- Removable terminal block connector
- Built-in I/O, DO: 16 Channels
- Power-On-Value
- Safe-Value
specifications
Digital Output| Channels | 16 |
|---|
| Type | Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | +3.5 ~ +50 V |
|---|
| Load Current | Non-RevB : 700 mA per channel ; RevB : 650 mA per channel |
|---|
| Isolation | 3000 VDC |
|---|
Ethernet| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 | Support daisy chain connection. |
|---|
| Protocol | Ethernet/IP (Adapter) |
|---|
Power| Consumption | Non-RevB : 1.6W ; RevB : 3.2W Max |
|---|
Mechanical| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
|---|
| Installation | DIN-Rail |
|---|
Environment| Operating Temperature | -25°C ~ +75°C |
|---|
| Storage Temperature | -30°C ~ +80°C |
|---|
