EIP-2019/S CR

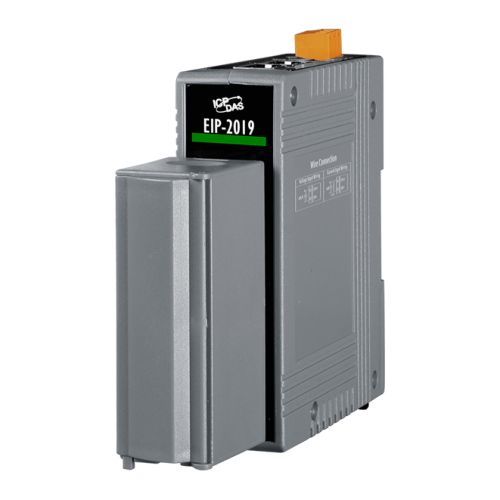

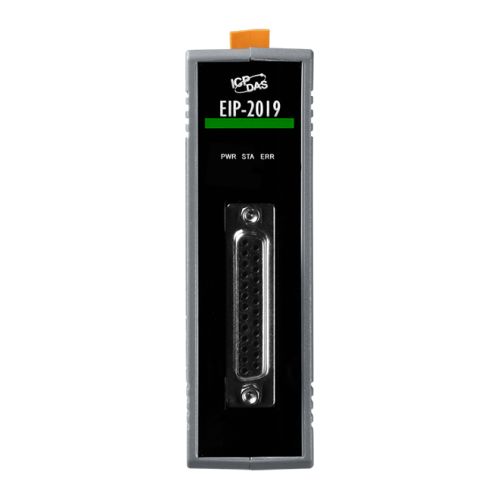

EtherNet/IP Module (Isolated 8-ch Universal Analog Input), with CN-1824 Daughter Board
The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.
The EIP-2019 is an 8-ch remote analog input module. It supports not only voltage and current(internal resistors selectable) input type but also thermocouple type with B,C,E,J,K,N,R,S,T. There is an automatically cold-junction compensation (CJC) for each channel. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2019 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.
EIP-2019/S CR : Isolated 8-ch Thermocouple AI EtherNet/IP Module with CN-1824 Daughter Board (RoHS)
- Transfer protocol: EtherNet/IP
- Powerful 32-bit MCU handles efficient network traffic

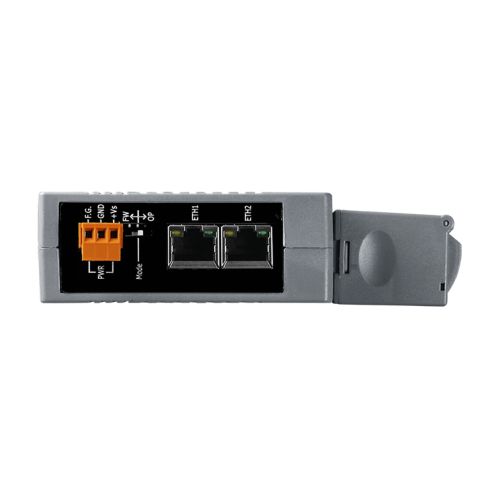

- 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
- Support ARP, TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
- Easy firmware update via Ethernet

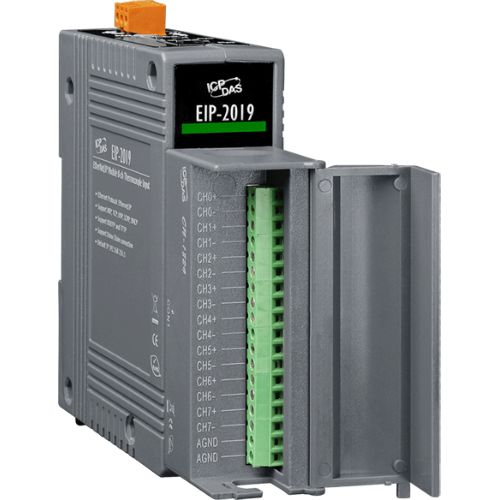

- Removable terminal block connector
- LED display to indicate the I/O status
- 8-ch analog Inputs
- Support cold-junction comensation (CJC)
- RoHS compliant
- Internal resistors (125Ω) selectable
Analog Input
Channels: 8-ch Thermocouple Analog Input
Input type: Voltage:±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ; Thermocouple:B,C,E,J,K,N,R,S,T Current: ±20 mA (Jumper Selectable)
Resolution: 16 bits
Sampling Rate: 10 samples/second (1 channel)
Accuracy: +/-0.1% (1 channel)
Zero Drift: +/-20uV/°C
Span Drift: +/-25ppm/°C
Input Impedance: Voltage Input: >400 kΩ, Current Input: 125 Ω
Intra-Module Isolation, Field-to-Logic: 3000 Vdc
Overvoltage protection: 240 Vrms
Individual Channel Configuration: Yes
Open Wire Detection: Yes
Communication Interface
Connector: 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection
Standard Supported: IEEE 802.3 Ethernet/IP
Power
Input Voltage Range: 10V ~ 30VDC
Power Consumption: 3.8W
Mechanism
Dimension: 110mm x 90mm x 33mm (H x W x D)
Installation: DIN-Rail
Environment
Operating Temp: -25°C ~ +75°C
StorageTemp: -30℃ ~ 80℃
