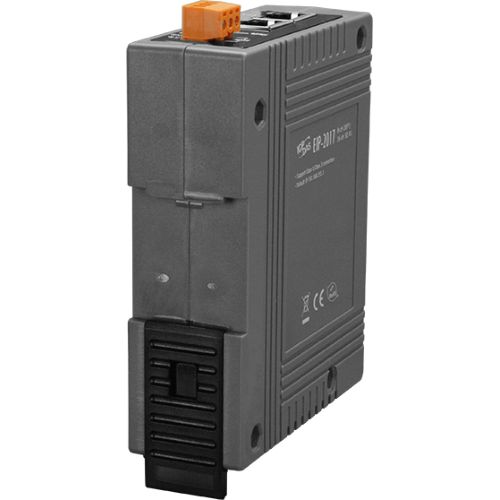

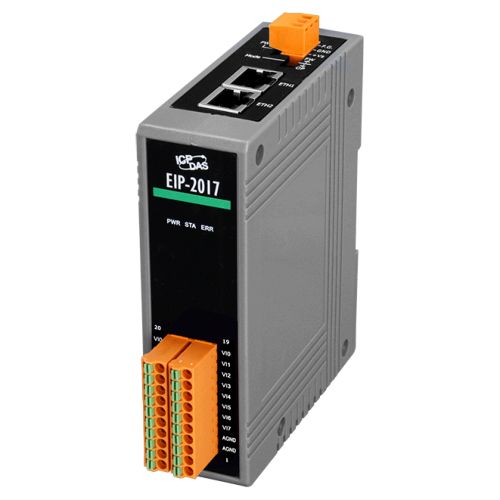

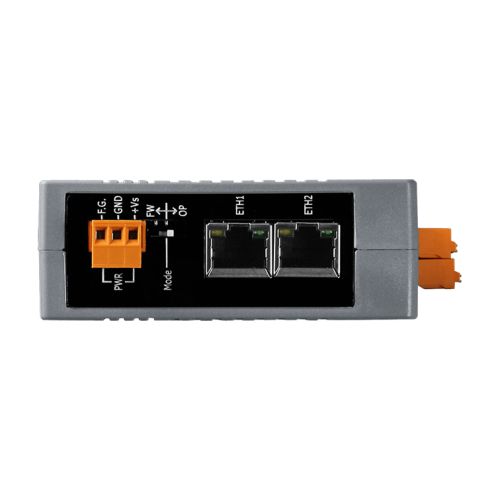

EIP-2017 CR ICP DAS EtherNet IP


EIP-2017 CR

EtherNet/IP Module (Isolated 8-ch DIFF / 16-ch SE Analog Input)



€ 246,78

(VAT excluded)

€ 301,07(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 301,07

Availability: 15 business days

SKU: 106244

Model: EIP-2017 CR

Need Help?

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The EIP-2017 is an 8-ch Differential and 16-ch Single-Ended AI module. The module provides a jumper to switch Differential and Single-Ended mode. It supports voltage and current input type. The accuracy of the measurement is smaller than 0.1% FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2017 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

EIP-2017 CR: Isolated 8-ch DIFF or 16-ch SE AI EtherNet/IP Module (RoHS)

  • Transfer protocol: EtherNet/IP
  • Powerful 32-bit MCU handles efficient network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Support ARP, TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
  • Easy firmware update via Ethernet
  • Removable terminal block connector
  • LED display to indicate the I/O status
  • Analog Input: Differential (8 Channels) - Single ended (16 Channels)
  • RoHS compliant
  • Internal resistors (125Ω) selectable in Differential mode

Analog Input

Channels: 8-ch differential or 16-ch single-ended (Jump selectable)
Input type: Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ;  Current: 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA   (Jumper Selectable in DIFF mode. An external resistor is required in SE mode)
Resolution: 16 bits
Sampling Rate: 10 samples/second
Accuracy: +/-0.1%
Zero Drift: +/-20uV/°C
Span Drift: +/-25ppm/°C
Input Impedance: Voltage Input: >400 kΩ, Current Input: 125 Ω
Intra-Module Isolation, Field-to-Logic: 3000 Vdc
Overvoltage protection: 240 Vrms
Individual Channel Configuration: Yes

Communication Interface

Connector: 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection
Standard Supported: IEEE 802.3 Ethernet/IP


Input Voltage Range: 10V ~ 30VDC
Power Consumption: 3.8W


Dimension: 110mm x 90mm x 33mm (H x W x D)
Installation: DIN-Rail


Operating Temp: -25°C ~ +75°C
StorageTemp: -30℃ ~ 80℃
