ECAT-M801-32AX CR ICP DAS PCI Express

ECAT-M801-32AX CR ICP DAS

ECAT-M801-32AX CR ICP DAS

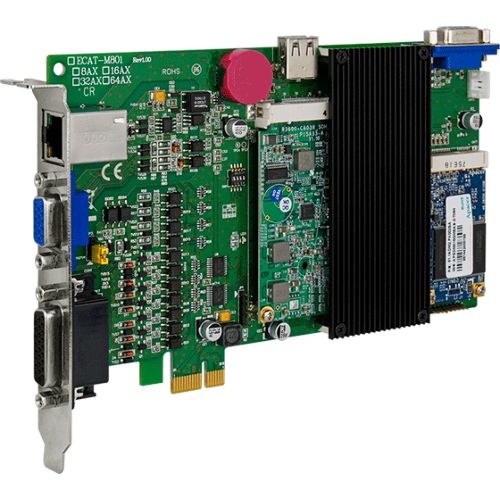

ECAT-M801-32AX CR

PCI Express, 32-Axis EtherCAT Master board with 13-ch DIO, 2-Axis Encoder, without cable and daughter board.

Quantity:

Price

€ 1.847,04

(VAT excluded)

€ 2.253,39(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 2.253,39

Availability: 15 business days

SKU: 119064

Model: ECAT-M801-32AX CR

Need Help?


 Features

  • Up to 32-axis motion control
  • Up to 64 slaves
  • Synchronized motion (E-GEAR, E-CAM)
  • Virtual axes
  • Multi-axis linear interpolation
  • On board 13 DI and 13 DO
  • On board 2 encoder interfaces with compare trigger output


Introduction

EtherCAT (Ethernet for Control Automation Technology) is an open, high-performance fieldbus system that makes Ethernet technologies available at the I/O level. EtherCAT provides flexible wiring, fast communication and many other nice features. It needs a master to control many slaves. ICP DAS provides PC master cards for users to build their motion related applications. This card can offer multi-axis motion and I/O control functions by its own built-in CPU. In this way, the CPU loading of PC can be reduced dramatically. In the mean while, ICP DAS also provides many I/O slave modules for users to choose from. Since EtherCAT technology is an industrial standard, those modules can work together in a system with 3rd-party EtherCAT slaves as well.


Specifications

Hardware

Connector: RJ45 x1
DB-26 (Female)
DB-15 (Female)


Encoder Input

No. of Axes: 2
Type: Quadrant, CW/CCW, Pulse/Dir.
Response Speed: 1 MHz
Resolution: 32-bit
Compare Trigger Output: 2-ch


Digital Input

Channels: 13
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: +19 V ~ + 24 V
OFF Voltage Level: +11 V Max.
Isolation: 3000 VDC


Digital Output

Channels: 13
Type: Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +24 V
Load Current: 100 mA/ch
Isolation: 3000 Vrms


PC Bus

Type: PCI Express x1


EtherCAT

Ports: 1 x RJ-45
No. of Axes: Max. 32
No. of Nodes: Max. 64
Data Transfer Medium: Ethernet Cable (Min. CAT 5e), Shielded


Mechanical

Dimensions (mm): 135 x 192 x 21.5 (W x L x D)


Environment

Operating Temperature: 0 ~ +60 °C
Storage Temperature: -20 ~ +70 °C
Humidity: 0 ~ 90% RH, Non-condensing
