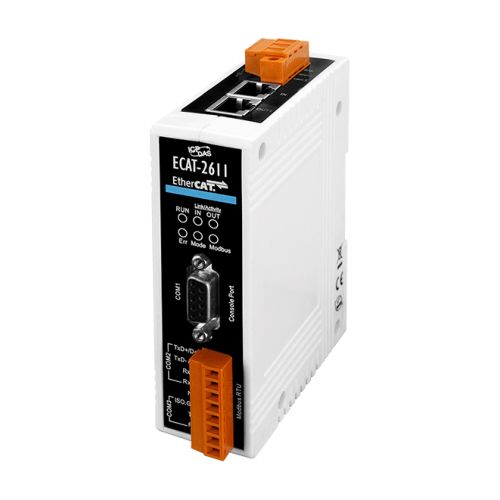

ECAT-2611 CR, EtherCAT Slave to Modbus RTU Slave Gateway
ECAT-2611 CR
EtherCAT Slave to Modbus RTU Slave Gateway
Free Shipping
Features
• Powerful MCU handles efficient network traffic
• 2 x RJ-45 EtherCAT connectors
• Transfer of I/O data between two networks
• Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
• Requires no hardware or software changes to be made to the connected device
• Compatible with all PLCs with EtherCAT support
• Performs complete serial protocol conversion, no PLC function blocks required
• Supports maximum 256 WORD Input and 256 WORD Output Data
• Supports serial port interface
‣ Supports Modbus RTU (Salve) protocol
‣ Supports RS-232/422/485 Port
‣ Supports maximum Baud Rate 115200 bps
‣ Supports Modbus Function code 03, 04, 06 and 16
Introduction
The ECAT-2611 is a proven and trusted protocol converter gateway module that allows you to seamlessly inter-connect devices between EtherCAT and Modbus RTU networks. The ECAT-2611 acts as a Slave on both networks, allowing I/O data to be transferred between the two networks. The ECAT-2611 provides a data exchange buffer that allows two different systems (EtherCAT Master and the Modbus RTU Master) exchange data easily and faster for more diverse applications.
Specifications
COM Ports
Ports: 1 x RS-232/422/485
Protocol: Modbus RTU (Salve)
EtherCAT

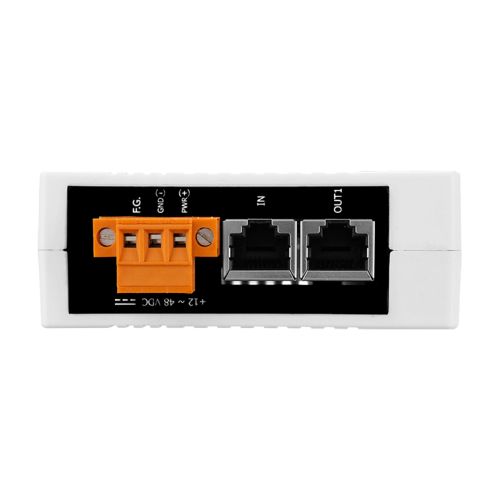

Ports: RJ-45 x 2
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e)
Cycle Time: 10 ms
Distributed Clocks: N/A
Power
Reverse Polarity Protection: Yes
Input Range: +12 VDC ~ +48 VDC
Consumption: 0.1 A @ 24 VDC
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 99 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
