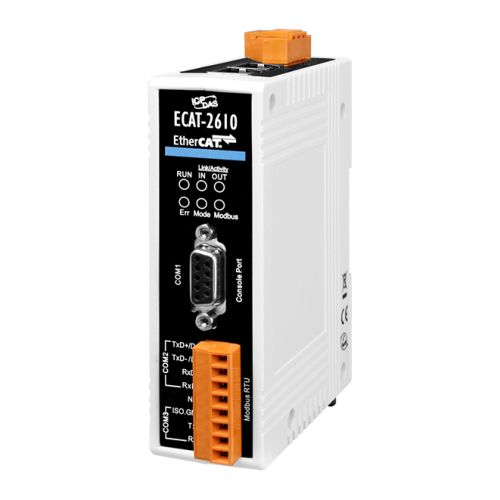

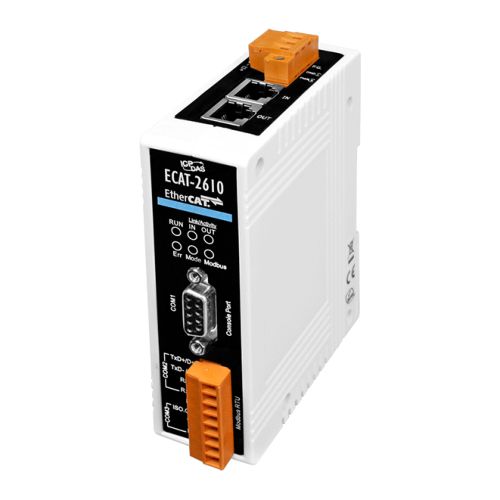

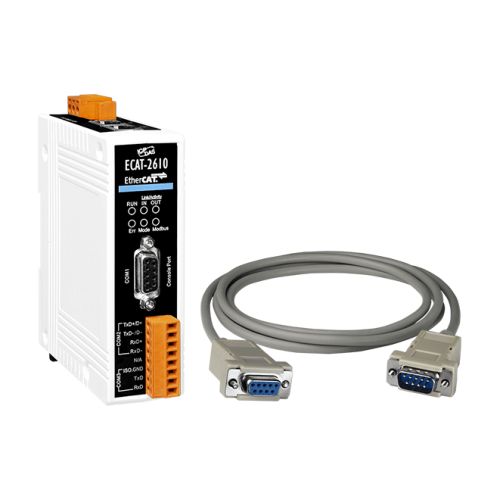

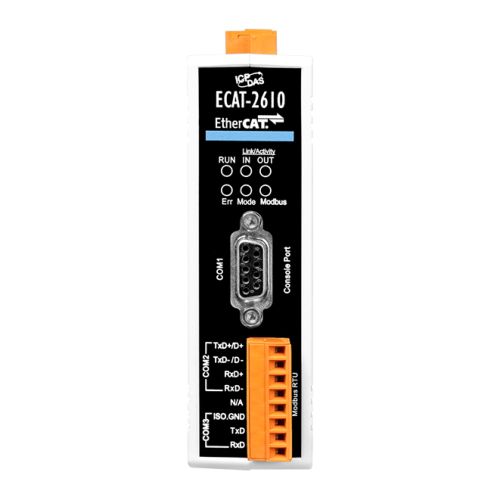

ECAT-2610 CR
EtherCAT to Modbus RTU Gateway
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Integrate RS-232/422/485 serial device to EtherCAT
- Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with EtherCAT support
- Performs complete serial protocol conversion, no PLC function blocks required
- Supports maximum 256 WORD Input and 256 WORD Output Data
- Supports maximum Baud Rate 115200 bps
- RoHS compliant
Introduction
Integrate your serial RS-232/422/485 based industrial devices and equipment to an EtherCAT control system without the need for any changes to the device. Just connect, configure and it's finished.
The ECAT-2610 Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.
Hardware Specifications
Protocol
EtherCAT
Communication Interface

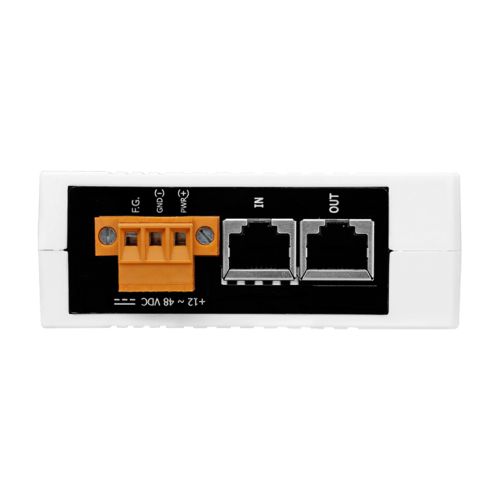

RJ-45 Port: RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/ EtherCAT Cable (Min. CAT 5e)
Serial Interface: RS-232: The RS-232, RS-422 and RS-485 cannot be used simultaneously
RS-422 TxD, RxD, GND
RS-485 TxD+, TxD-, RxD+, RxD-
Data+, Data-
Power
Input Voltage Range: +12 ~ +48 VDC
Power Consumption: 0.1 A @ 24 VDC
Protection: Power reverse polarity protection
Connector: 3-Pin Removable Terminal Block (5.08 mm)
Mechanical
Dimensions (H x W x D): 110 mm x 90 mm x 33 mm

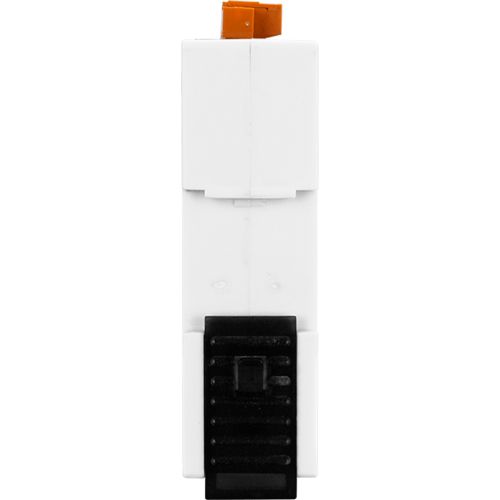

Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Relative Humidity: 10 ~ 90% RH, Non-condensing
