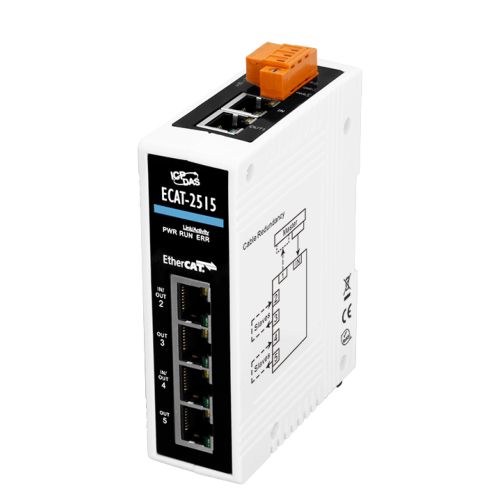

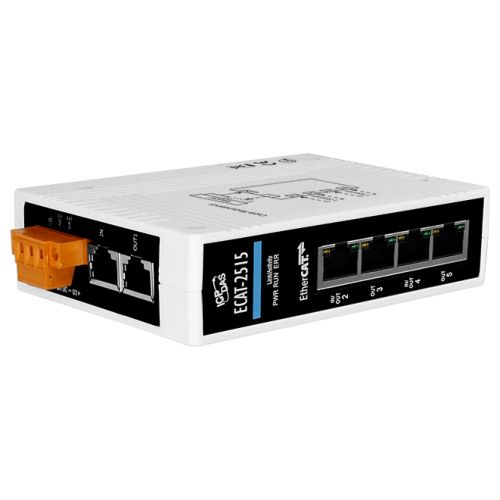

ECAT-2515 CR, 6-Port EtherCAT Junction Slave Module
ECAT-2515 CR
6-Port EtherCAT Junction Slave Module
Free Shipping
Features
- Powerful MCU handles efficient network traffic
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
Introduction
ECAT-2515 is 1-to-5 port EtherCAT junction slaves. They are designed for realizing flexible wiring by daisy chain and branch. The ECAT-2515 cannot be used as a standard Ethernet switch.
Applications
Benefit 1: Translate Daisy-chain to Branch Topology.
Benefit 2: Improving the Debugging Efficiency.
Specifications
EtherCAT

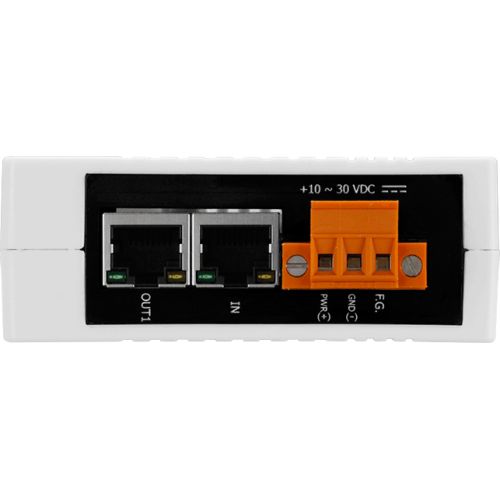

Ports: 6 x RJ-45 (1 IN; 5-OUT)
No. of Nodes: 4
Distance Between Stations: Max. 100 m (100BASE-TX)
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 0.06 A @ 24 VDC
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 90 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ + 75 °C
Storage Temperature: -30 ~ + 80 °C
Humidity: 10 ~ 90% RH, non-condensing
