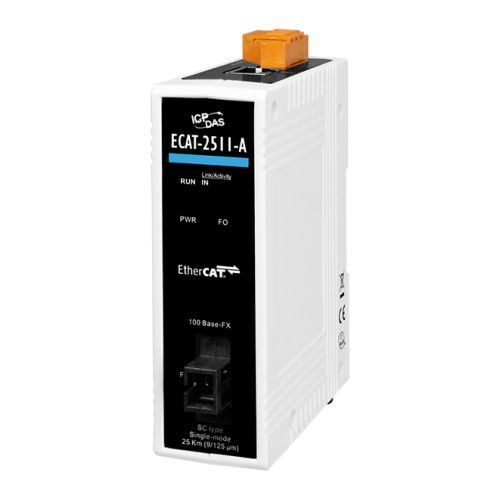

ECAT-2511-A CR
EtherCAT Single-Strand Media Converter, TX 1310 nm, RX 1550 nm, SC
- Powerful MCU handles efficient network traffic
- Distance between Stations up to 15 km (100BASE-FX)
- 50% Cost Saving for Fiber Optic Infrastructures
- EtherCAT conformance test tool verified
- ESD Protection 4 KV Contact for each port
Introduction
The ECAT-2511-A and ECAT-2511-B are EtherCAT to single-mode fiber optic converter. They are designed not only to convert EtherCAT signals to optical signals on a fiber optic cable, to reshape the EtherCAT signal to compensate for distortion, but to isolate the bus error due to the wire short or disturbance. With the advantage of fiber optic, the ECAT-2511-A and ECAT-2511-B enable secure data transmission via fiber optic transmission, and helps the EtherCAT network to prevent the noise from EMS/RFI interference.
50% Cost Saving for Fiber Optic Infrastructures:
With a pair of ECAT-2511 series products (ECAT-2511-A and ECAT-2511-B), you can double the utilization of your existing, costly fiber optic cable, and save 50% of the cost of a newly installed fiber optic application.
Hardware Specifications
Protocol
EtherCAT
Communication Interface
RJ-45 Port: RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e)
Fiber Port: Single-Mode; SC connector x 1
Wavelength: TX: 1310, RX: 1550 nm
Distance between Stations: 25 km (9/125 μm recommended)
Power Input
Redundant Input Range: +12 ~ +48 VDC
Power Consumption: 0.1 A @ 24 VDC
Protection: Power reverse polarity protection
Connector: 3-Pin Removable Terminal Block (5.08mm)
Mechanical
Dimensions: 110mm x 90mm x 33mm (H x W x D)
Installation: DIN-Rail
Environmental
Operating Temperature: -25 °C ~ + 75 °C
Storage Temperature: -30 °C ~ + 80 °C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
