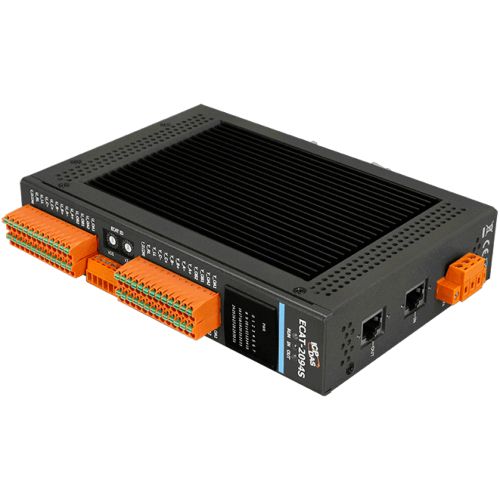

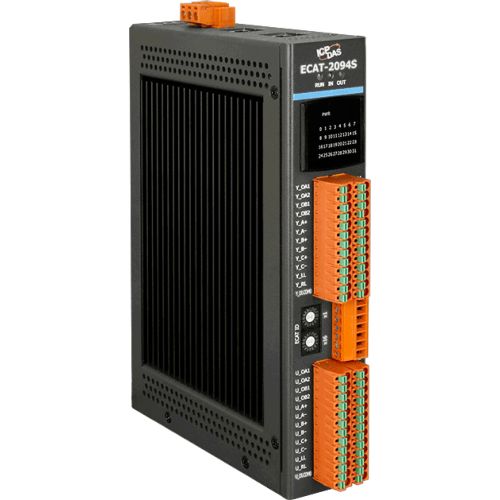

ECAT-2094S CR ICP DAS EtherCAT

• Supports four stepper motors (2-phase bipolar)

• Stepper motors are controlled in an open loop operation

• Programmable coil current level: up to 1.5 A/phase

• Programmable microstep size: maximum 256 microsteps per full step

• Supported motor voltage range: 6 to 46VDC

• 4 x Encoder interfaces (A, B, Z), differential

• 8 x Digital input. Two DI channels for each axis: reference switch input, latch input

• 2 x Digital output

• Automatic current reduction to reduce heat generation when motor is at standstill

• Drive protection:

      ‣ Over-temperature

      ‣ Under voltage

      ‣ Short circuit

• Optically isolated I/O

• LED indicators for I/O, EtherCAT and motion status

• Internal memory for storing configuration data

• EtherCAT:

      ‣ 2 x RJ-45 bus interface

      ‣ Distance between stations up to 100 m (100BASE-TX)

      ‣ Support daisy chain connection

      ‣ EtherCAT conformance test tool verified

      ‣ Supports Free-Run, SM-Synchron and Distributed Clock (DC) operation modes

• Removable terminal block connector



The ECAT-2094S stepper motor controller is a cost-effective, two-phase bipolar stepper driver. The ECAT-2094S simultaneously controls up to four stepper motors. A motor voltage range between 6 and 46V DC and a maximum motor coil current of 1.5A/phase is being supported. For each motor the maximum running coil current, microstep resolution and other motion parameters are software selectable.

The ECAT-2094S is a standard EtherCAT slave and an EtherCAT master is required to operate the device. The ECAT-2094S supports three operation modes: Free-Run, SM-Synchron and Distributed Clock (DC).

Two-phase bipolar stepper motors can be directly connected to the ECAT-2094S device. The device is designed to operate the stepper motor in an open loop. Configuration has to be done by the EtherCAT master and the application program. Each stepper motor is being independently controlled by a separated driver IC. The four driver ICs are not synchronized and work independently from each other. The driver automatically controls the torque and position of the motor. An integrated ramp generator automatically calculates the acceleration and deceleration distance. In position mode the controller drives the motor to the target position and in velocity mode accelerates the motor to the target velocity. All motion parameters can be changed on the fly.

The ECAT-2094S has four integrated incremental encoder interfaces. Four 32 bit high frequency encoder counter counts the input signal of external incremental encoders. The encoder can for example be used for homing purposes and for consistency checks.

High resolution of up to 256 microsteps per full step is supported for a ensuring smooth and precise motor operation.

For each motor two digital input channels are provided. The digital inputs can be set to act as a simple DI, as a left and right hardware limit switch which automatically stops the motor when activated, or a latch trigger for latching the current motor and encoder position.

The module must be supplied by three power sources. Two motor supply and a 24Vdc control supply. Two motors share one power supply.



• Automated Test Equipment

• Surveillance Systems

• Labeling Machinery

• Packaging

• Semiconductor Manufacturing

• Engraving Machine

• Automatic Feeding Machine



EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A

ESD (IEC 61000-4-2): 4 KV Contact for each channel

Surge (IEC 61000-4-5): 1 KV Class A



Status: 1 x Power

1 x Operation State

2 x Communication

8 x DI status

2 x DO status

16 x Motion status



No. of Axes: 4, differential

Frequency: 4 MHz Max.



No. of Axes: 4x Stepper motor, 2 phases

Current Controller Frequency: 24.5 kHz

Microsteps Per Step: 256, 128, 64, 32, 16, 8, 4, 2

Output Current: 1.5 A/phase

Step Frequency: 8.388 MHz Max.

Voltage Range of The Motor Output: 6 to 46 VDC



Channels: 8 (2x Limit position for each motor)

Type: Wet Contact

ON Voltage Level: 10 ~ 30 VDC

OFF Voltage Level: 5 VDC Max.

Isolation: 3750 VDC



Channels: 2

Type: Open collector

Load Voltage: +5 to 30 VDC

Load Current: 100 mA

Isolation: 3750 VDC



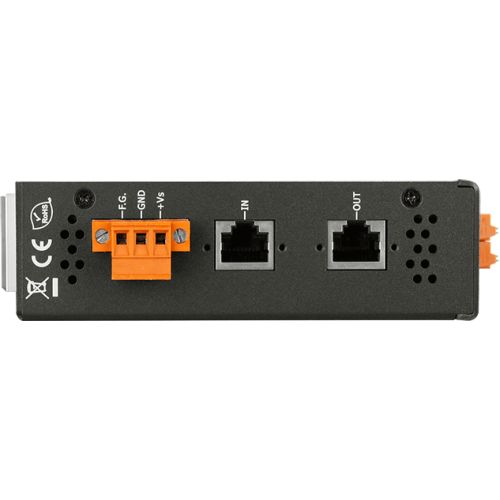

Ports: 2 x RJ-45

Distance Between Stations: 100 m Max. (100Base-TX)

Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded

Cycle Time: 1 x axis: 1.0 Millisecond

2 x axis: 2.0 Millisecond

3 x axis: 3.0 Millisecond

4 x axis: 4.0 Millisecond

Distributed Clocks: Yes



Input Range: +20 VDC ~ +30 VDC



Casing: Metal

Dimensions (mm): DIN-rail mounting: 37 x 191 x 148 (W x L x H)

Wall mounting: 37 x 229 x 142 (W x L x H)

Installation: DIN-rail mounting or wall mounting



Operating Temperature: -25 ~ +40 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
