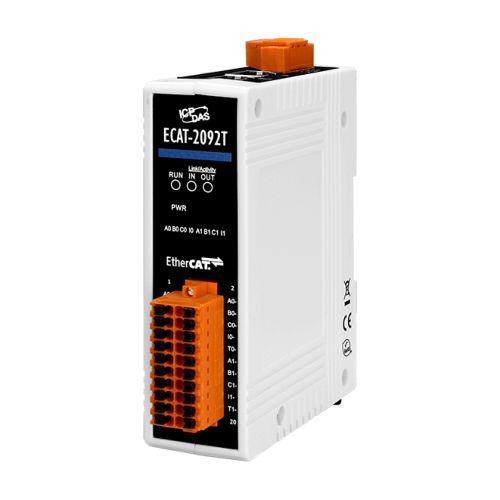

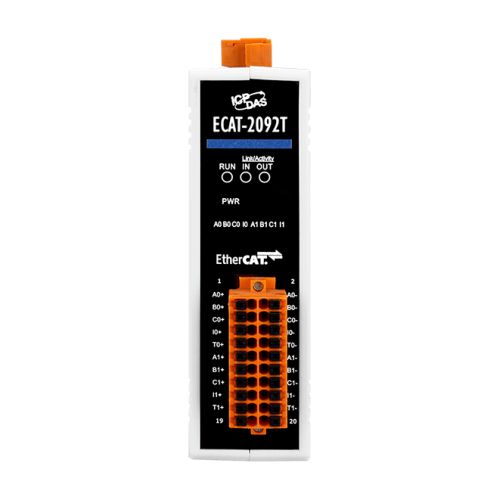

ECAT-2092T CR, EtherCAT two-channel incremental encoder counter with compare trigger output
ECAT-2092T CR
EtherCAT two-channel incremental encoder counter with compare trigger output
Features
- EtherCAT slave
- Two channels, 32-bit incremental encoder counters
- Encoder counting mode: CW/CCW, Pulse/Direction, A/B Phase
- Maximum counting rate: 4 MHz
- Encoder Input: A, B, C differential or single-ended signals
- Two digital input for counter latching
- Two digital output for position compare signal trigger: single, auto-increment and array compare
- Encoder digital input filter
- Input level: 5V, 12V/24V with internal resistor
- Polarity setting by software for active high or active low encoder input
- A/B/C signal isolation voltage: 2500V optical isolation
Introduction
The EtherCAT slave ECAT-2092T is an incremental encoder counter which provides two independent high-speed counter channels. It reads the pulse train generated by an incremental encoder and can be used in positioning feedback applications. Each channel has two counter (A, B) and one index inputs (C). The inputs can either be single-ended or differential signals. Three counting modes are supported: clockwise/counterclockwise, pulse/direction and quadrant counting mode. Each 32-bit counter and the trigger level (falling/rising edge) can be configured and set by software.
In addition to the encoder inputs A, B and C, a latch input I for each encoder channel allows the latching and clearing of each encoder counter. Encoder position are latched at rising and falling input signal and are recorded in two separate register.
The ECAT-2092T supports position compare: Each encoder channel is equipped with one 32-bit compare register which compares the counter position with the compare position and generates an output signal when the counter reaches or passes the compare position. The compare function supports single, auto incremental and array position compare. The pulse width of the compare output can be set.
Each channel has got an adjustable input signal filter for filtering out electrical noises.
Applications
• Position measurement
• Image capture
• Automated optical inspection
• Line-scan vision inspection
• Data acquisition
Specifications
EMS Protection
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
ESD (IEC 61000-4-2): 4 KV Contact for each channel
Surge (IEC 61000-4-5): 1 KV Class A
LED Indicators
Status: 1 x Power
1 x Operation State
2 x Communication
8 x DI status
Encoder Input
No. of Axes: 2, differential or single-ended
Resolution: 32 Bit
Programmable Digital Filter: 1 ~ 250 μs
Photo-isolation: 2500 VDC
Mode: A/B Phase, CW/CCW, Pulse/Dir
Input Level: 5V (default)
12V/24V with internal resistor (set by jumper)
Frequency: 4 MHz Max.
Compare Trigger Output
Channels: 2
Load Voltage: 5 ~ 48 V
Max. Load Current: 100 mA
Trigger Pulse Width: 2 ~ 32,767 μs
External Latch Input
Channels: 2
Input Level: 5V (default)
12V/24V with internal resistor (set by jumper)
EtherCAT

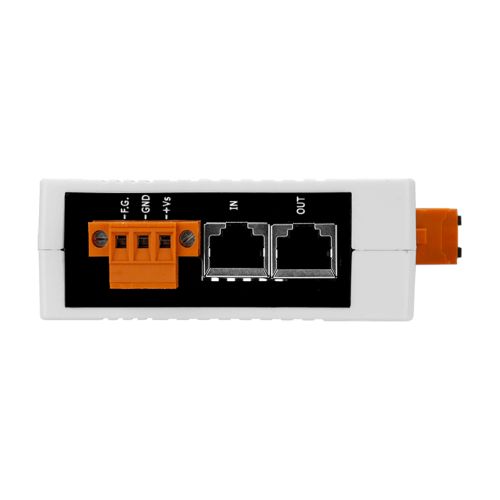

Ports: 2 x RJ-45
Distance Between Stations: 100 m Max. (100Base-TX)
Data Transfer Medium: Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time: 0.5 Millisecond
Distributed Clocks: Yes
Power
Input Range: +20 VDC ~ +30 VDC
Consumption: 4.5 W Max.
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 108 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
