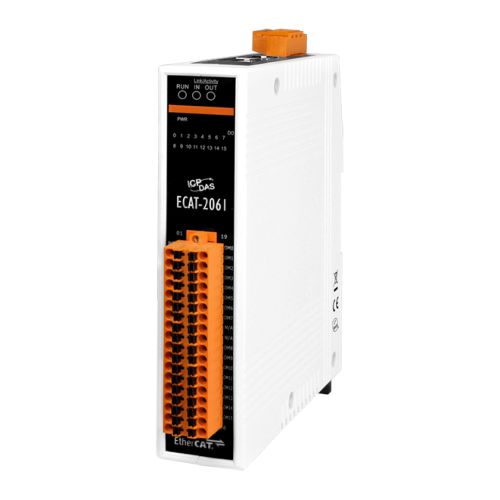

ECAT-2061 CR
EtherCAT Slave I/O Module with Isolated 16-ch Relay
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In digital I/O: 16-ch Relay DO
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.
The ECAT-2061 is built in isolated 16 relay outputs. Users can obtain the output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
Hardware Specifications
Digital Output
Channels: 16
Type: Form A (SPST-NO)
Contact Rating (Resistive Load): 3 A @ 250 VAC(47~63Hz)
3 A @ 30 VDC
Operate Time: 10 ms Max.
Release Time: 5 ms Max.
Insulation Resistance: 1,000 MΩs at 500 VDC
Dielectric Strength Between Open Contact: 1000 VAC (1 min.)
Dielectric Strength Between Coil and Contacts: 3000 VAC (1 min.)
Endurance Mechanical: 2 x 107 ops
Endurance Electrical: 1 x 105 ops
Power On Value: Yes
Safe Value: Yes
Photo-Isolation: 3000 VDC
Communication Interface

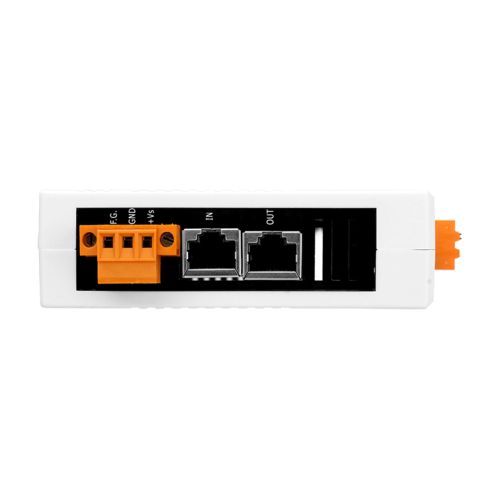

Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range: 10V ~ 30VDC
Power Consumption: Max. 4W
Mechanism
Installation: DIN-Rail
Dimensions: 140mm x 112.2mm x 31mm (H x W x D, without connectors)
Case Material: UL 94V-0 housing
Environment
Operating Temperature: -25℃ ~ 75℃
Storage Temperature: -30℃ ~ 80℃
Relative Humidity: 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2): 4 KV Contact for Each Channel
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
