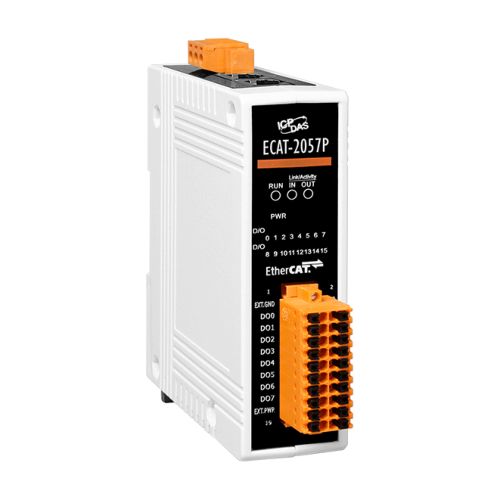

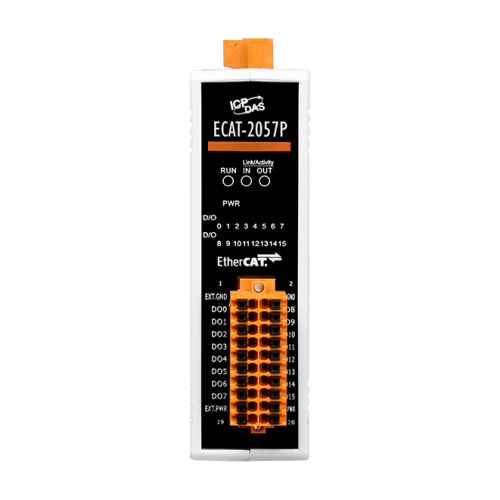

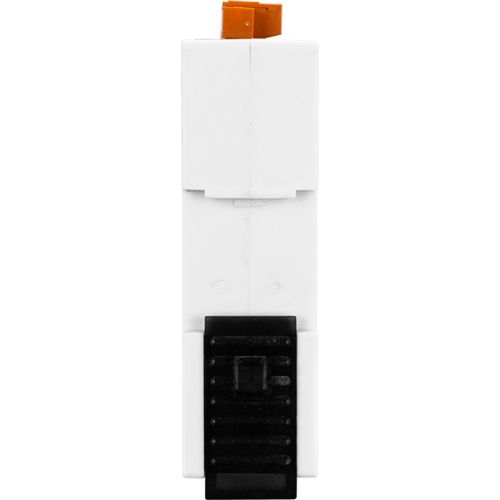

ECAT-2057P CR, EtherCAT Slave I/O Module with Isolated 16-ch Digital output (Source, PNP, 500 mA)
ECAT-2057P CR
EtherCAT Slave I/O Module with Isolated 16-ch Digital output (Source, PNP, 500 mA)
Free Shipping
Features
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In digital I/O: 16 DO
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2057 series is built in isolated 16 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
Specifications
EMS Protection
EFT (IEC 61000-4-4): Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2): ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5): ± 1 kV Class A
Digital Output
Channels: 16
Type: Open Source (Source)
Load Voltage: +10 VDC ~ +40 VDC
Load Current: 500 mA/Channel
Isolation: 3750 Vrms
EtherCAT
Ports: 2 x RJ-45
Distance Between Stations: 100 m Max. (100Base-TX)
Data Transfer Medium: Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time: 200 us
Distributed Clocks: Yes
Power
Input Range: +10 VDC ~ +30 VDC
Consumption: 4 W Max.
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 108 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
