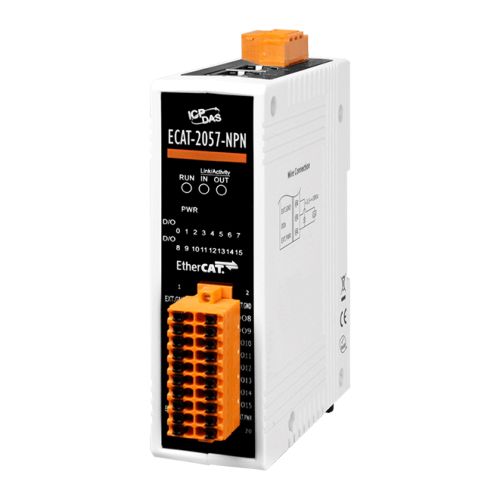

ECAT-2057-NPN CR ICP DAS EtherCAT

• On the fly processing: EtherCAT
• Powerful MCU handles efficient network traffic

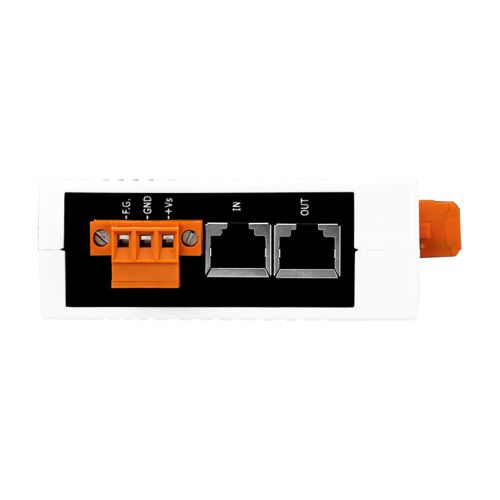

• 2 x RJ-45 bus interface
• Distance between Stations up to 100 m (100BASE-TX)
• Support daisy chain connection
• EtherCAT conformance test tool verified
• Removable terminal block connector
• LED indicators for the I/O status
• Built-In digital I/O: 16 DO
• RoHS compliant
• ESD Protection 4 KV Contact for each channel

Applications

Semiconductor Tools
Metal Forming
Packaging
Injection Molding
Assembly Systems
Printing Machines
Robotics

Hardware specifications

Digital Output
Channels: 16
Output Type: Open Collector (Sink)
Load Voltage: +3.5 ~ 30 V
Max. Load Current: 100mA per channel
Isolation Voltage: 3750 Vrms

Communication Interface
Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded

Power
Input Voltage Range: 10V ~ 30VDC
Power Consumption: Max. 4W

Mechanism
Installation: DIN-Rail
Dimensions: 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material: UL 94V-0 housing

Environment
Operating Temperature: -25℃ ~ 75℃
Storage Temperature: -30℃ ~ 80℃
Relative Humidity: 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2): 4 KV Contact for Each Channel
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
