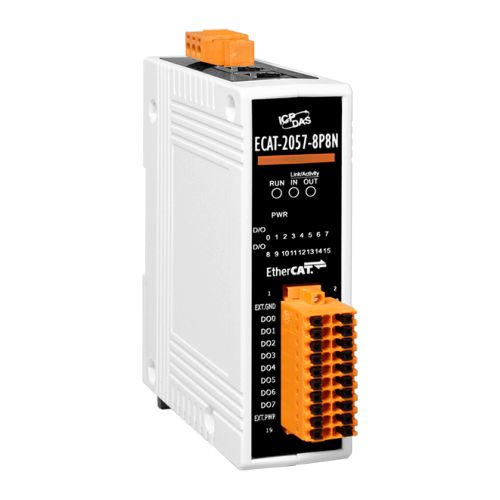

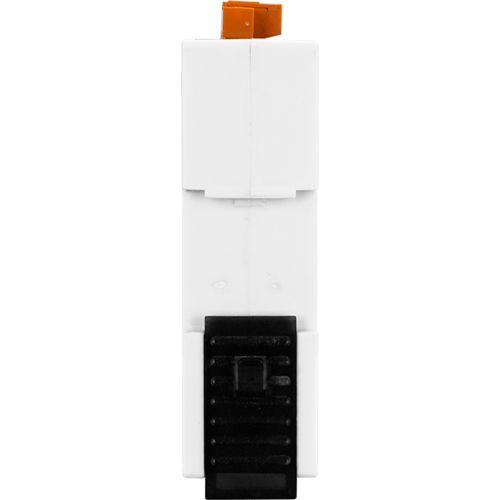

ECAT-2057-8P8N CR
EtherCAT Slave I/O Module with Isolated 8-ch Digital output (Source, PNP) and 8-ch Digital output (Sink, NPN)
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic

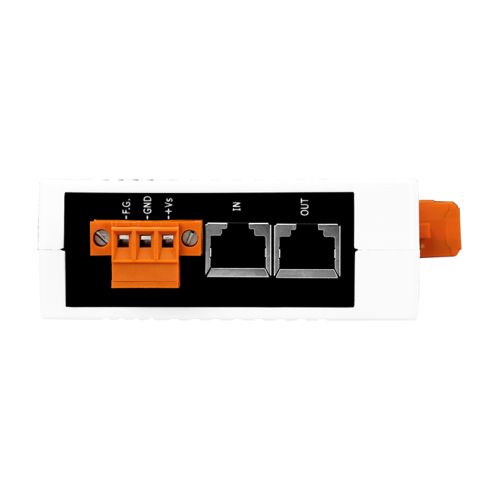

- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector

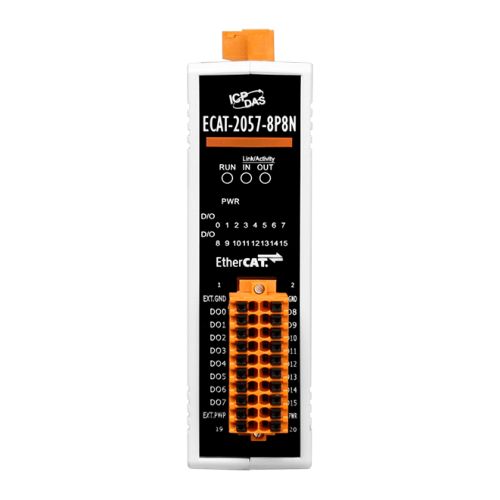

- LED indicators for the I/O status
- Built-In digital I/O: 16 DO
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2057-8P8N is an industrial slave I/O module built in 16 digital outputs. It is equipped with the EtherCAT* protocol and installed
by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only
via the process data but also from its LED indicators. The ECAT-2057-8P8N has passed and verified by the conformance test tool, therefore
eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Hardware specifications
Digital Output
Channels: 16
Output Type: Open Source/Collector (Source/Sink)
Load Voltage: +3.5 ~ 30 V
Max. Load Current: 100mA per channel
Isolation Voltage: 3750 Vrms
Communication Interface
Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range: 10V ~ 30VDC
Power Consumption: Max. 4W
Mechanism
Installation: DIN-Rail
Dimensions: 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material: UL 94V-0 housing
Environment
Operating Temperature: -25℃ ~ 75℃
Storage Temperature: -30℃ ~ 80℃
Relative Humidity: 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2): 4 KV Contact for Each Channel
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
