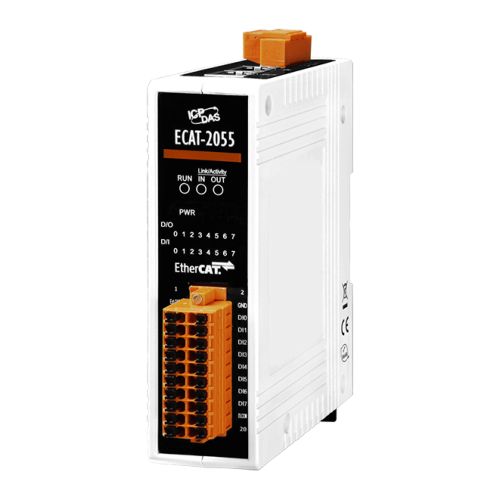

ECAT-2055 CR
EtherCAT Slave I/O Module with Isolated 8-ch Digital input (Dry, Wet) and 8-ch Digital output (Sink, NPN)
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.
The ECAT-2055 is built in isolated 8 digital inputs and 8 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
ECAT-2055 CR: EtherCAT Slave I/O Module with Isolated 8-ch DO and 8-ch DI (RoHS)
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic

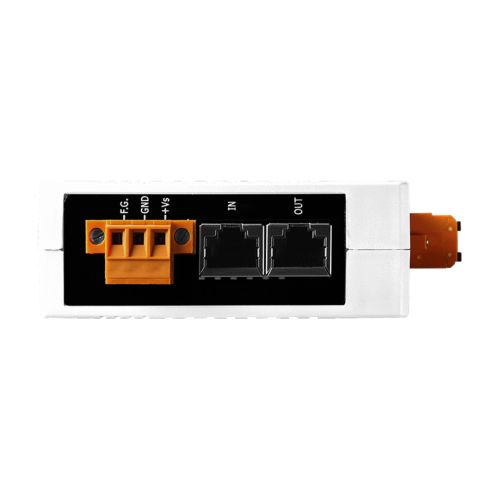

- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified

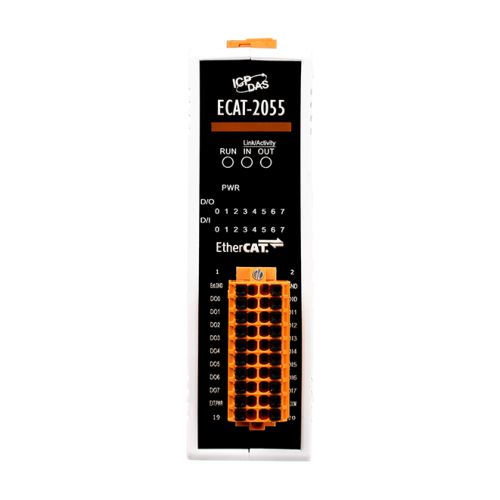

- Removable terminal block connector
- LED indicators tfor the output status
- Built-In 16 digital I/O: 8 DI and 8 DO
- RoHS compliant
- ESD Protection 4KV Contact for each channel
Digital Input
Channels: 8
Input type: Dry (Source) / Wet (Sink/Source)
Off Voltage Level: Open / +4V max.
On Voltage Level: Close to GND / +10 V ~ +50 V
Isolation Voltage: 3750 Vrms
Digital Output
Channels: 8
Output type: Open Collector
Load Level: +3.5 ~ +50 V
Max. Load Current: 700mA per channel
Isolation Voltage: 3750 Vrms
Communication Interface
Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range: 10V ~ 30VDC
Power Consumption: Max 4W
Mechanism
Dimension: 110mm x 90mm x 33mm (H x W x D, whitout connectors)
Case Material: UL 94V-0 housing

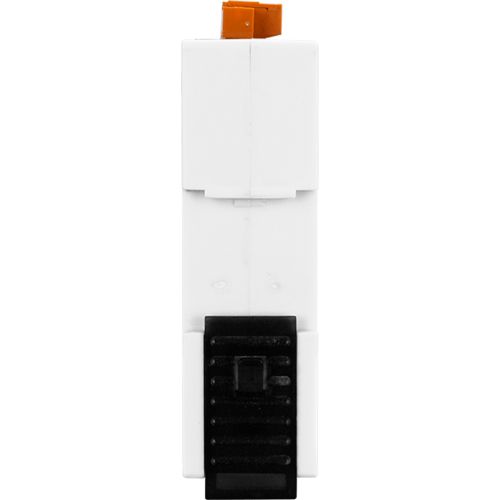

Installation: DIN-Rail
Environment
Operating Temp: -20 to +75°C
StorageTemp: -30℃ ~ 80℃
Relative Humidity: 10 to 95% RH, Non-condensing
ESD (IEC 61000-4-2): 4 KV Contact for Each Channel
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
