ECAT-2055-32 CR ICP DAS EtherCAT



ECAT-2055-32 CR

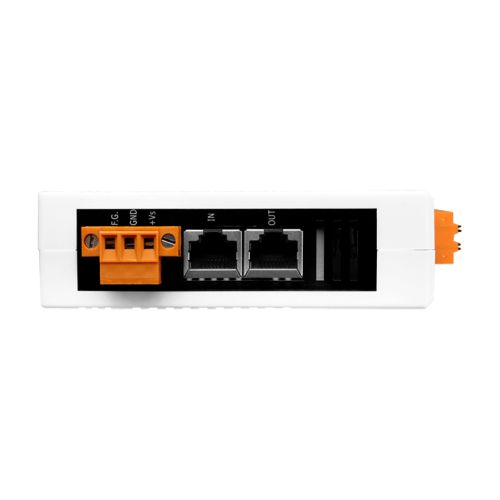

EtherCAT Slave I/O Module with Isolated 16-ch Digital input (Dry, Wet) and 16-ch Digital output (Sink, NPN)



€ 217,43

(VAT excluded)

€ 265,26(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 265,26

Availability: 15 business days

SKU: 110580

Model: ECAT-2055-32 CR

Need Help?

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic
  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 meters (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators for the I/O status
  • Built-In digital I/O: 16-ch DI and 16-ch DO
  • RoHS compliant
  • ESD Protection 4 KV Contact for each channel


The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which allows the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be set up as a star, line or ring network topologies. The isolation input and output design protect the ECAT-2000 against the harmful interference and environment.
The ECAT-2055-32 is built-in isolated 16 digital inputs and 16 digital outputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool; therefore eligible EtherCAT Master or configurator can operate it with ease and implement various applications easily.


  • Semiconductor Tools
  • Metal Forming
  • Packaging
  • Injection Molding
  • Assembly Systems
  • Printing Machines
  • Robotics

Hardware Specifications

Digital Output
Channels: 16
Input Type: Wet (Sink/Source)/ Dry (Source)
Wet Contact ON Voltage Level: +10 V ~ +50 V
Wet Contact OFF Voltage Level: +4 V Max.
Dry Contact ON Voltage Level: Close to GND
Dry Contact OFF Voltage Level: Open
Photo-Isolation: 3750 VDC
Digital Output
Channels: 16
Output Type: Open Collector (Sink)
Load Voltage: +3.5 ~ 50 V
Max. Load Current: 500 mA per channel
Isolation Voltage: 3750 VDC
Communication Interface
Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100 BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 4 W Max.
Dimensions (H x W x D): 140 mm x 112.2 mm x 31 mm
Installation: DIN-Rail Mounting
Case Material: UL 94V-0 Housing
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Relative Humidity: 10 ~ 90% RH, Non-condensing
