ECAT-2053 CR ICP DAS EtherCAT

ECAT-2053 CR ICP DAS

ECAT-2053 CR

EtherCAT Slave I/O Module with Isolated 16-ch Digital input (Wet)

Quantity:

Price

€ 127,15

(VAT excluded)

€ 155,12(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 155,12

Availability: 15 business days

SKU: 106612

Model: ECAT-2053 CR

Need Help?



The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.
The ECAT-2053 is built in isolated 16 digital inputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
ECAT-2053 CR: EtherCAT Slave I/O Module with Isolated 16-ch DI (RoHS)

  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic

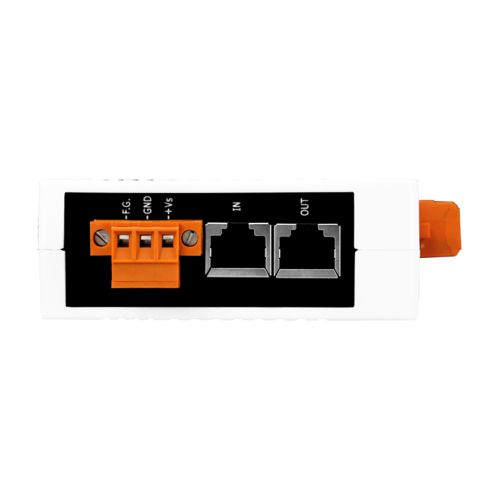

  • 2 x RJ-45 bus interface
  • Distance between Stations up to 100 m (100BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators for the I/O status
  • Built-In digital I/O: 16 DI
  • RoHS compliant
  • ESD Protection 4 KV Contact for each channel


Digital Input

Channels: 16
Input Type: Wet (Sink/Source)
Off Voltage Level: +2V Max.
On Voltage Level: +3.5 V ~ +50 V
Isolation Voltage: 3750 VDC

Communication Interface

Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded

Power

Input Voltage Range: 10V ~ 30VDC
Power Consumption: Max. 4W

Mechanism

Installation: DIN-Rail
Dimensions: 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material: UL 94V-0 housing

Environment

Operating Temperature: -25℃ ~ 75℃
Storage Temperature: -30℃ ~ 80℃
Relative Humidity: 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2): 4 KV Contact for Each Channel
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
