ECAT-2051-32 CR
EtherCAT Slave I/O Module with Isolated 32-ch Digital input (Dry, Wet)
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic

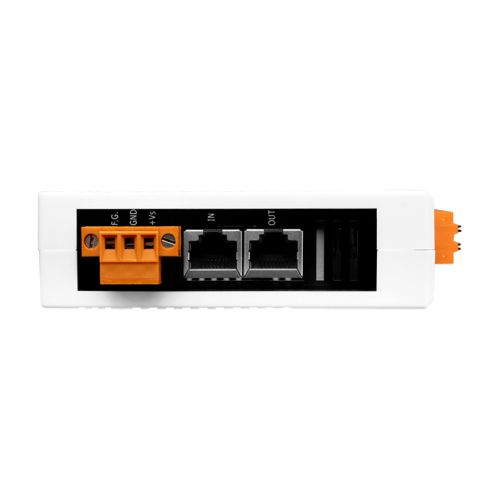

- 2 x RJ-45 bus interface
- Distance between stations up to 100 m (100 BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the input status
- Built-In isolated 32 digital inputs
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2051-32 is an industrial slave I/O module built in 16 digital inputs. It is equipped with the EtherCAT* protocol and installed by
daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the
process data but also from its LED indicators. The ECAT-2051-32 has passed and verified by the conformance test tool, therefore eligible
EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Hardware Specifications
Digital Input
Channels: 32
Input Type: Wet (Sink/Source)/ Dry (Source)
Wet Contact ON Voltage: Level +10 V ~ +50 V
Wet Contact OFF Voltage: Level +4 V Max.
Dry Contact ON Voltage Level: Close to GND
Dry Contact OFF Voltage Level: Open
Photo-Isolation: 3750 VDC
Communication Interface
Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100 BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
Power
Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 4 W Max.
Mechanical
Dimensions (H x W x D): 140 mm x 112.2 mm x 31 mm
Installation: DIN-Rail Mounting
Case Material: UL 94V-0 Housing
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Relative Humidity: 10 ~ 90% RH, Non-condensing
