ECAT-2050 CR
EtherCAT Slave I/O Module with Isolated 13-ch Digital input (Wet) and 4-ch Digital output (Sink/Source, NPN/PNP)
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain which allows the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be set up as a star, line or ring network topologies. The isolation input and output design protect the ECAT-2000 against the harmful interference and environment.
The ECAT-2050 is built-in isolated 4 source or sink type digital outputs and 13 digital inputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool; therefore eligible EtherCAT Master or configurator can operate it with ease and implement various applications easily.
ECAT-2050 CR: EtherCAT Slave I/O Module with Isolated 4-ch Source or Sink type DO and 13-ch DI (RoHS)
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic

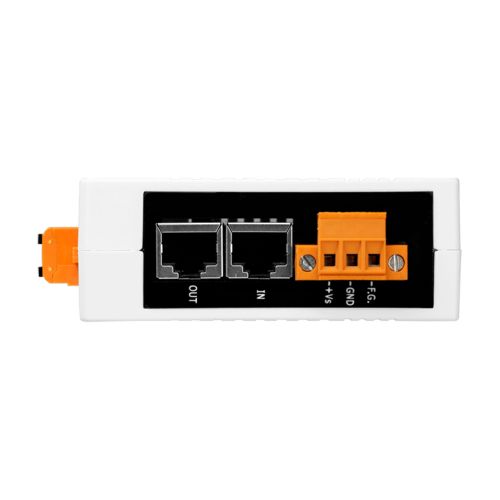

- 2 x RJ-45 bus interface
- Distance between Stations up to 100 meters (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In digital I/O: 4-ch source or sink type DO and 13-ch DI
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Digital Input
Channels: 13
Input Type: Wet (Sink/Source)
Wet Contact:
Off Voltage Level: +4 V Max.
On Voltage Level: +10 V ~ +50 V
Photo-Isolation: 3750 VDC
Digital Output
Channels: 4
Output Type: Open Collector (Sink)/Open Emitter (Source)(Jumper Selectable)
Load Voltage: +3.5 ~ +50 V
Max. Load Current: 100 mA per channel
Isolation Voltage: 3750 VDC
Communication Interface
Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100 BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range: 10V ~ 30 VDC
Power Consumption: 4.5 W Max.
Mechanism

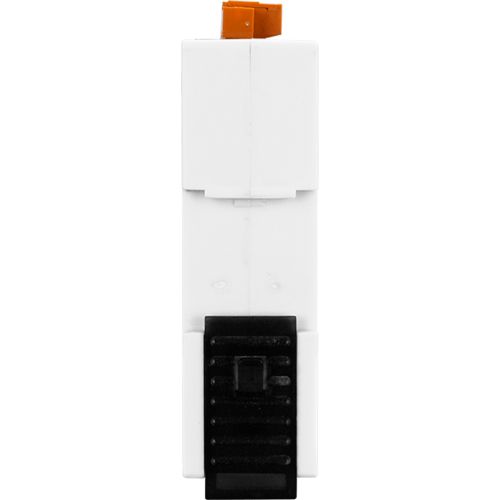

Installation: DIN-Rail Mounting
Dimensions: 110 mm x 90 mm x 33 mm
Case Material: UL 94V-0 Housing
Environment
Operating Temperature: -25℃ ~ 75℃
Storage Temperature: -30℃ ~ 80℃
Relative Humidity: 10 ~ 90%, No Condensation
