ECAT-2024 CR
EtherCAT Slave I/O Module with Isolated 4-ch AO
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- 4 channels, 12-bit analog output
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.
The ECAT-2024 is built in 4 12-bit analog output channels. Users can obtain the output status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
Hardware Specifications
Analog Output
Channels: 4
Range: ±5 V, ±10 V, 0~5V, 0~10V
Resolution: 12-bit
Accuracy: +/- 0.1% of FSR
Zero Drift: +/- 30 μV/°C
Span Drift: +/- 25 ppm/°C
Communication Interface

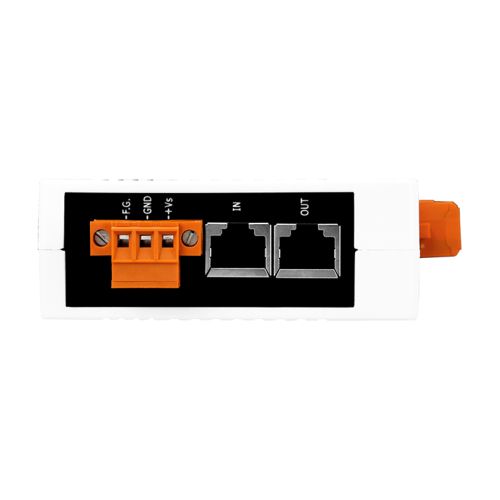

Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range: 10V ~ 30VDC
Power Consumption: Max. 4W
Mechanism

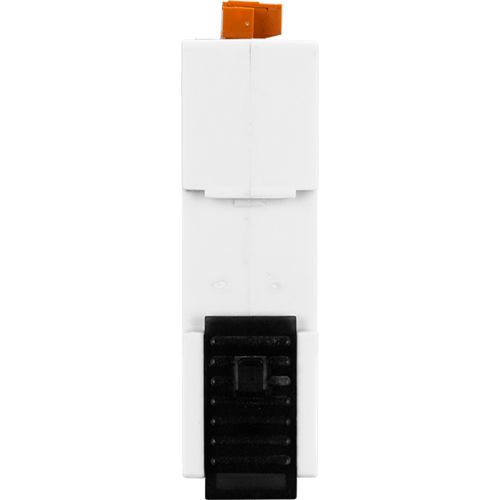

Installation: DIN-Rail
Dimensions: 110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material: UL 94V-0 housing
Environment
Operating Temperature: -25℃ ~ 75℃
Storage Temperature: -30℃ ~ 80℃
Relative Humidity: 10 ~ 90%, No Condensation
ESD (IEC 61000-4-2): 4 KV Contact for Each Channel
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A
