ECAT-2016N CR ICP DAS EtherCAT



The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment. The ECAT-2016N is 1-channels analog input terminal permits direct connection of a resistor bridge. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configuration can manipulate it simply and implement your various applications easily.



Semiconductor Tools

Metal Forming

Packaging

Injection Molding

Assembly Systems

Printing Machines

Robotics



EFT (IEC 61000-4-4): Signal: ±1 kV Class A; Power: ±1 kV Class A

ESD (IEC 61000-4-2): ± 4 kV Contact for Each Channel

Surge (IEC 61000-4-5): ± 1 kV Class A

Strain Gauge, Load Cell Input:

Channels: 1

Type: Strain Gauge

Range: ±1.25 V, ±600 mV, ±300 mV, ±125 mV, ±80 mV, ±60 mV, ±40 mV, ±30 mV, ±20 mV, ±15 mV, ±10 mV (Software selectable)

Wiring: Full-Bridge

Accuracy: ±0.1% of FSR

Resolution: 16-bit

Sampling Rate: 1k Hz per channel

Individual Channel Configuration: YES

Overvoltage Protection: ±35 VDC



Channels: 1

Range: + 10 V

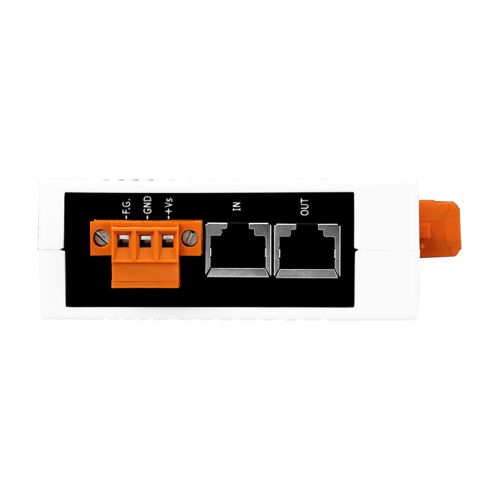

Ports: 2 x RJ-45

Distance Between Stations: 100 m Max. (100Base-TX)

Data Transfer Medium: Ethernet/EtherCAT cable (Min. CAT5), shielded

Cycle Time: 1 ms

Distributed Clocks: N/A



Input Range: +10 VDC ~ +30 VDC

Consumption: 4 W Max.



Casing: Plastic

Dimensions (mm): 33 x 127 x 108 (W x L x H)

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
