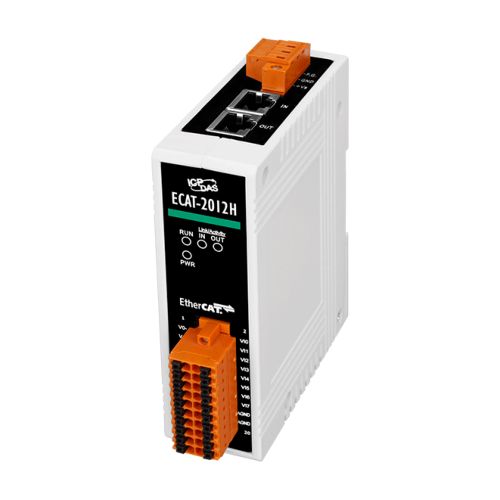

ECAT-2012H CR, EtherCAT Slave I/O Module with 16-bit, 16-ch/8-ch Analog input
ECAT-2012H CR
EtherCAT Slave I/O Module with 16-bit, 16-ch/8-ch Analog input
Free Shipping
Features
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic

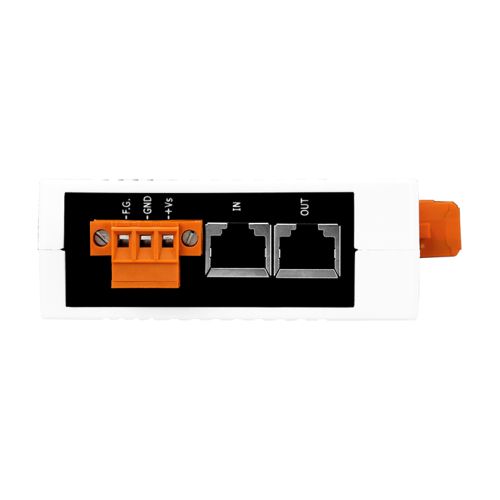

- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators
- Built-in Analog Input: 16bit, 8-/16-ch
- RoHS compliant
Introduction
The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The ECAT-2012H is built in 16-bit, 8-ch differential inputs or 16-ch single-ended inputs. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
Specifications
EMS Protection
EFT (IEC 61000-4-4): Signal: ±1 kV Class A; Power: ±1 kV Class A
ESD (IEC 61000-4-2): ± 4 kV Contact for Each Channel
Surge (IEC 61000-4-5): ± 1 kV Class A
Analog Input
Channels: 8 Diff/16 S.E
Type: Voltage, Current
Range: 0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4 ~20 mA (Software selectable)
Resolution: 16-bit
Accuracy: 0.05% of FSR
Sampling Rate: 1k Hz per channel(Max. for 6 channel enable)
Overvoltage Protection: ±35 VDC
Individual Channel Configuration: Yes
Open Wire Detection: Yes
EtherCAT
Ports: 2 x RJ-45
Distance Between Stations: 100 m Max. (100Base-TX)
Data Transfer Medium: Ethernet/EtherCAT cable (Min. CAT5), shielded
Cycle Time: 1 ms
Distributed Clocks: N/A
Power
Input Range: +10 VDC ~ +30 VDC
Consumption: 4 W Max.
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 108 (W x L x H)

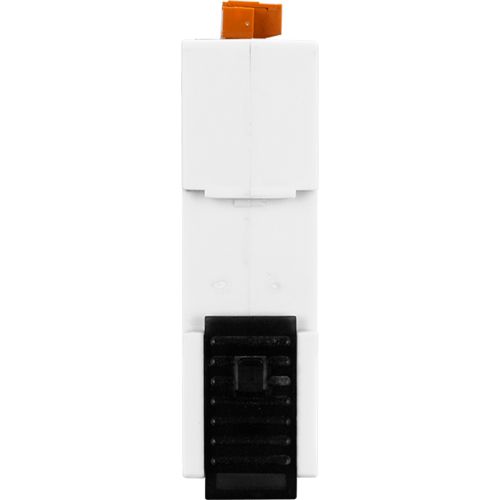

Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
