ECAT-2011H CR ICP DAS EtherCAT

ECAT-2011H CR ICP DAS

ECAT-2011H CR ICP DAS

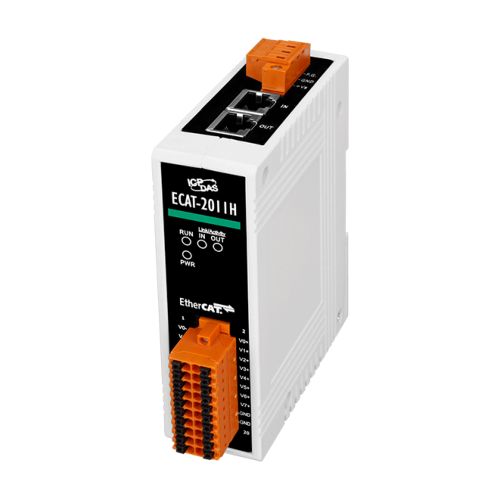

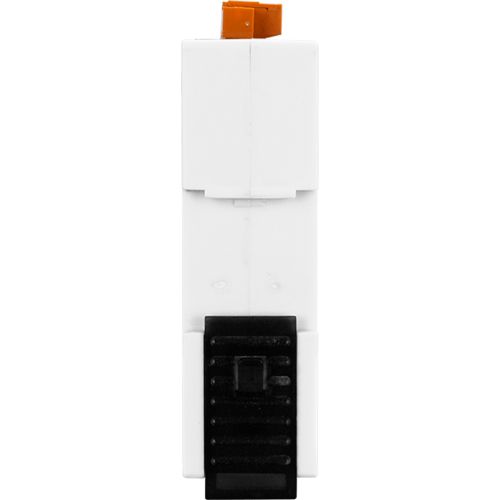

ECAT-2011H CR

EtherCAT Slave I/O Module with 16-ch/8-ch AI

Quantity:

Price

€ 352,86

(VAT excluded)

€ 430,49(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 430,49

Availability: 15 business days

SKU: 110879

Model: ECAT-2011H CR

Need Help?


  • On the fly processing: EtherCAT
  • Powerful MCU handles efficient network traffic
  • 2 x RJ-45 bus interface
  • Distance between stations up to 100 m (100 BASE-TX)
  • Support daisy chain connection
  • EtherCAT conformance test tool verified
  • Removable terminal block connector
  • LED indicators
  • 16 Single-ended/8 Differential Analog Inputs
  • RoHS compliant

Introduction

The ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring.

The ECAT-2011H is built in 8-ch differential inputs or 16-ch single-ended inputs by software selectable. Users can obtain the input status via the process data. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.

Hardware Specifications

Analog Input
Channels: 8/16
Wire Connection: 8 Differential or 16 Single-ended (Software Selectable)
Type: Voltage, Current
Range: 0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4~20 mA(Software selectable)
Resolution: 12-bit
Sampling Rate: 1k Hz per channel
Accuracy: 0.2% of FSR
Individual Channel Configuration: Yes
Over Voltage Protection: ±35 VDC
Open Wire Detection for +4 ~ 20mA: Yes

Communication Interface

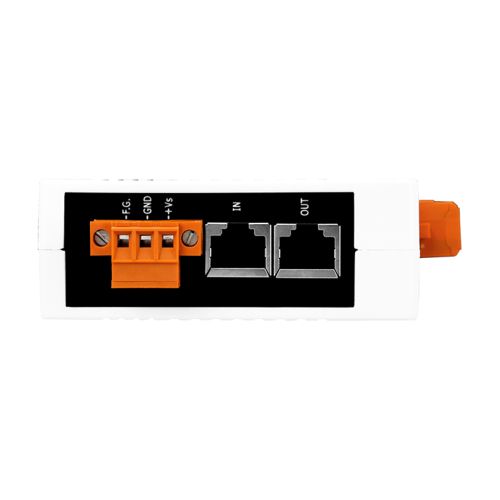

Connector: 2 x RJ-45
Protocol: EtherCAT
Distance between Stations: Max. 100 m (100 BASE-TX)
Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5), Shielded

EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
EFT (IEC 61000-4-4): Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5): 1 KV Class A

Power
Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 4 W Max.

Mechanical
Dimensions (H x W x D): 110 mm x 90 mm x 33 mm
Installation: DIN-Rail Mounting
Case Material: UL 94V-0 Housing

Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Relative Humidity 10: ~ 90% RH, Non-condensing
