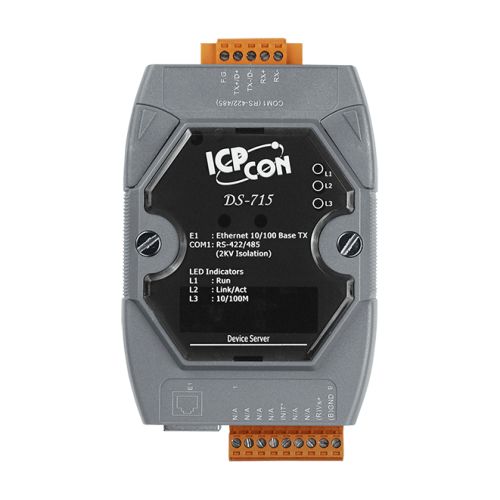

DS-715 CR ICP DAS Serial to Ethernet

• Incorporate Serial Devices in an Ethernet network

• "Virtual COM" Extend COM Ports

• Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32

• High Performance Device Server

• Watchdog Timer suitable for use in harsh environments

• Power Reverse Polarity Protection

• Serial Port +/-4 kV ESD Protection Circuit

• RoHS Compliant with no Halogen

• Built-in High Performance MiniOS7 from ICP DAS

• 10/100 Base-TX Ethernet, RJ-45 Port
• (Auto-negotiating, auto MDI/MDI-X, LED indicator)

• ODM Service Is Available

• Low power consumption

• Palm-Sized with multiple Serial Ports

• Made from fire retardant materials (UL94-V0 Level)

• Self-Tuner ASIC Controller on the RS-485 Port

• Supports Modbus TCP to RTU/ASCII Gateway
• Supports PoE (IEEE 802.3af, Class 1)

The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.
The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.
The DS-700 is a non-programmable device server, while the PPDS-700-MTCP is a programmable product. The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.

CPU

CPU: 80186-80 MHz or compatible
SRAM: 512 KB
Flash Memory: Flash ROM: 512 KB
EEPROM: 16 KB; Data return: 40 years.
Built-in Watchdog Timer: Yes

Communication Interface

Isolated(2000Vrms):
                               COM1:
                                  RS-422 (TxD+, TxD-, RxD+,RxD-)
                                  RS-485(D2+,D2-)
Ethernet:
        10/100 Base-TX, RJ-45 port
        (Auto-negotiating, auto MDI/MDI-X, LED indicator)

COM Port Formats

Data Bit: 7, 8: for COM1
Parity: None, Even, Odd, Mark, Space
Stop Bit: 1, 2: for COM1
Baud Rate: 115200 bps Max.

Power

Protection: Power Reverse Polarity Protection
Required Supply Voltage: +12 VDC ~ +48 VDC (non-regulated)
Power Consumption: 2.0 W

LED Indicators

L1: Run (Red)
L2: Link/Act (Red)
L3: 10/100M (Orange)

Mechanical

Flammability: Fire Retardant Materials (UL94-V0 Level)
Dimension (W x H x D): 72 mm x 124 mm x 35 mm

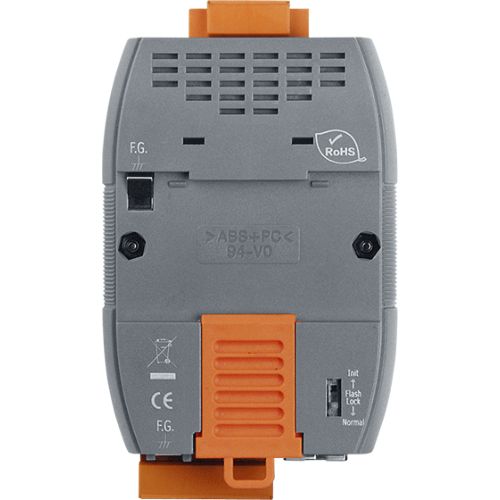

Installation: DIN-Rail or Wall mounting

Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90% RH, non-condensing
