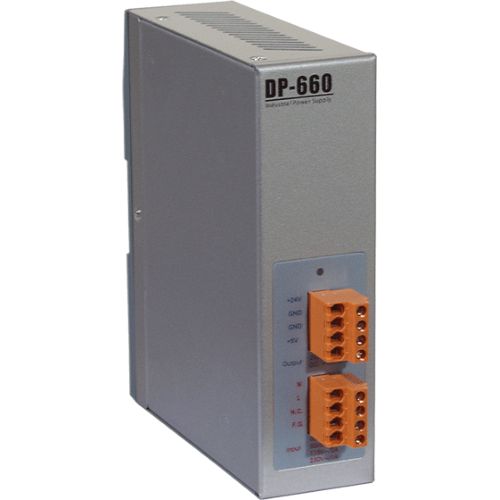

DP-660
Power Supply, 85~270 VAC to 24 VDC/2.5 A, 5 V/0.5 A, 65 W, DIN-rail mounting
Free Shipping
- Input voltage: 85VAC to 270VAC
- Input frequency: 47Hz to 63Hz
- Inrush current (Cold start):
- less than 30A at 115Vac
- less than 60A at 230Vac
- DC Outputs:
- +24V/2.5A
- +5V/0.5A
- Efficiency: higher than 70% at rated load and 115Vac
- Holdup time: 16ms at rated load and 115Vac
- Over voltage protection: hiccup mode
- Short circuit protection: latch off
- Over voltage protection: latch off
- Operating temperature: 0 to 50 °C
- Cooling: free air convection
- Storage temperature: -40 °C to +85 °C
DP-660 is a 65 watts,universal input switching mode power supply.
It is with 24V/5V output options. DP-660 is intended for power device like motor or solenoid application.Build in +5V 3T-regulator for DP-660 is for if there is a logical control circuit.
