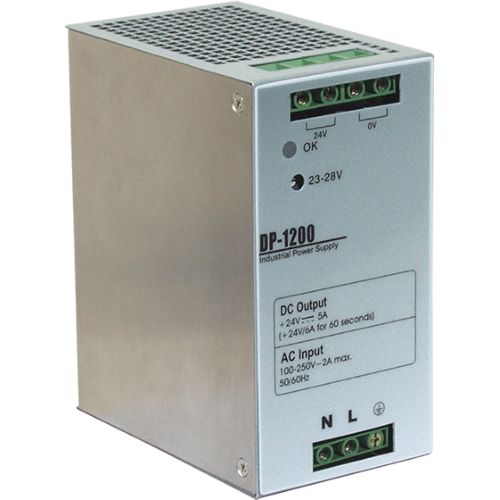

DP-1200 CR
Power Supply, 85~264 VAC to 24 VDC/5 A, 120 W, DIN-rail mounting
- With built in PFC
- 90% efficiency
- 60% power boost ability
- 23V to 28V adjustable range
Input voltage: 85Vac to 264Vac
Input current: <1.6A @ 115Vac, <0.8A @230Vac
Input frequency: 47Hz to 63Hz
Inrush current (cold start)
< 15A at 115Vac
< 30A at 230Vac
Outputs
MODEL NUMERO: DP-1200
OUTPUT RAIL: +24V
LOAD:
MIN: 0A
RATED: 5A
MAX: 6A
VOLTAGE ACCURACY: ±2%
RIPPLE NOISE: <50mVpp
LINE REG.: ±0.1%
LOAD REG.: ±0.5%
Efficiency: 90% typical at 230Vac
Hold up time: longer than 20ms at 115Vac
Over voltage protection: latch off
Over load protection: auto recovery
Short circuit protection: auto recovery
Cooling: free air convection
EMI standard: FCC docket 20780 curve "B" EN55022 "B", EN61000-3-2 class D
Safety: UL 1950, UL 508 CSA 22.2 No. 950-M90 EN 60 950

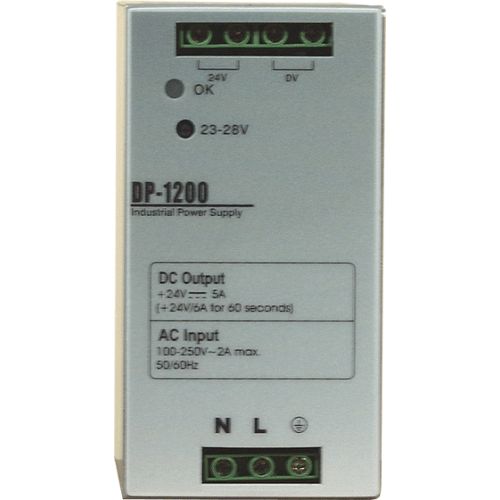

Power on indicator: Green light on the panel
Connectors: AC & DC Connector: Terminal blocks (suitable wire 26~10AWG)

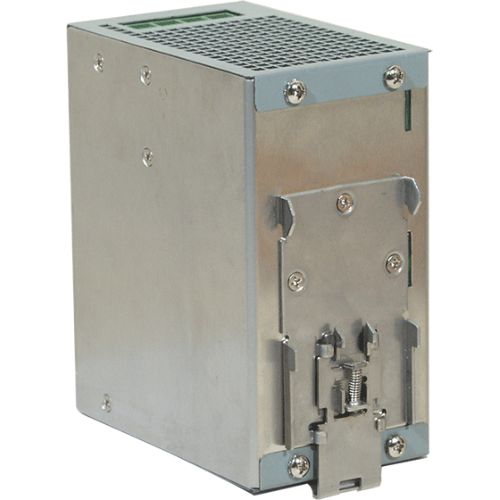

Hook: For standard symmetrical 35mm DIN-rail
