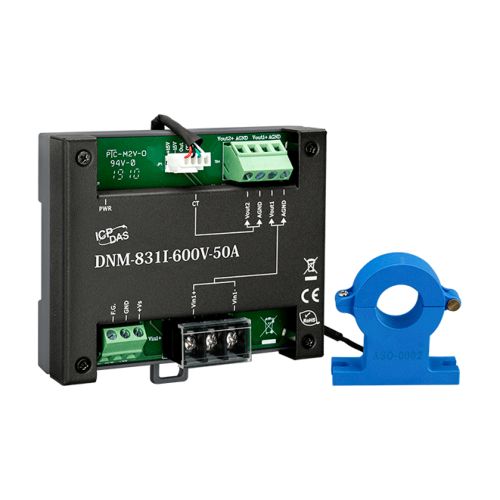

DNM-831I-600V-50A CR ICP DAS Voltage Attenuator

DNM-831I-600V-50A CR ICP DAS

DNM-831I-600V-50A CR

1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (50 A) (Metal) Includes CA-040415 Cable and ASO-0002 Current Transformer



€ 206,90

(VAT excluded)

€ 252,42(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 252,42

Availability: 15 business days

SKU: 118607

Model: DNM-831I-600V-50A CR

Need Help?


  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • 3000 VDC Channel to Channel Isolation
  • 4 kV ESD Protection
  • 3 kV Surge Protection
  • Easily wire connection


The DNM-831I-600V-50A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±600 V can be attenuated to ±10 V and the maximum current input range is from ±50 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.


EMS Protection

ESD (IEC 61000-4-2): ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5): ±3 kV for power liner


Type: Clip
Inside Diameter: Φ21 mm
Leading Cable: 1.5 m

Analog Input

Channels: High Current: 1
High Voltage: 1
Type: AC/DC Current
AC/DC Voltage
Range: High Current: ±50 A
High Voltage: ±600 VDC
Accuracy: High Current: 1% of FSR
High Voltage: 1% of FSR
Bandwidth: High Current: 0 ~ 50 KHz
High Voltage: 20 Hz ~ 20 kHz
Isolation: High Current: 2.5 KV @ 50 (60) HZ/1 min

Analog Output

Channels: High Current: 1
High Voltage: 1
Type: AC/DC Current
AC/DC Voltage
• High Current: ±10 VDC or 10 VAC
• High Voltage: ±10 VDC or 10 VAC


Input Range: +10 VDC ~ +30 VDC
Consumption: 1.8 W


Casing: Metal
Dimensions (mm): 103 x 97 x 29 (W x L x D)
Installation: DIN-Rail Mounting


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90% RH, Non-condensing
