DNM-831I-600V-500A CR ICP DAS Voltage Attenuator

DNM-831I-600V-500A CR ICP DAS

DNM-831I-600V-500A CR ICP DAS

DNM-831I-600V-500A CR

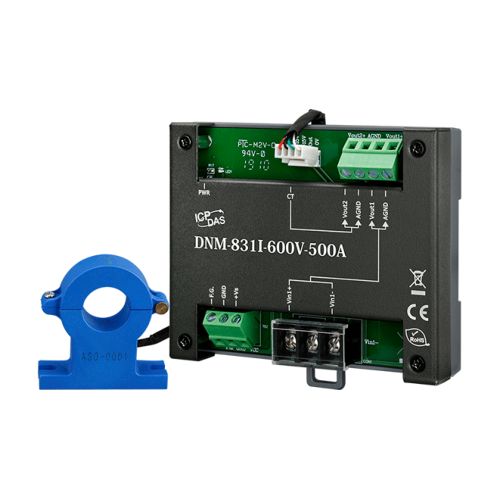

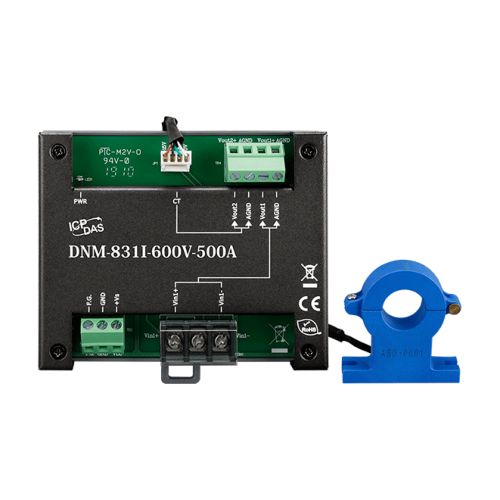

1 Channel Voltage Attenuator (600V) and 1 Channel Current Transformer (500 A) (Metal) Includes CA-040415 Cable and ASO-0001 Current Transformer

Quantity:

Price

€ 222,71

(VAT excluded)

€ 271,71(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 271,71

Availability: 15 business days

SKU: 118627

Model: DNM-831I-600V-500A CR

Need Help?


 Features

  • High Voltage Input and High Current Input Measurement
  • Three Way Isolation
  • Linear Attenuation Ratio
  • High Input Impedance
  • 3000 VDC Channel to Channel Isolation
  • 4 kV ESD Protection
  • 3 kV Surge Protection
  • Easily wire connection

Introduction

The DNM-831I-600V-500A is 1-channel voltage attenuator and 1-channel current transformer. The maximum voltage input range is from ±600 V can be attenuated to ±10 V and the maximum current input range is from ±500 A can be attenuated to ±10 V. It provides 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high current.


Specifications

EMS Protection
ESD (IEC 61000-4-2): ±4 kV contact for power line, input and output channels, ±8 kV air for random point
Surge (IEC 61000-4-5): ±3 kV for power liner


CT

Type: Clip
Inside Diameter: Φ21 mm
Leading Cable: 1.5 m


Analog Input

Channels: High Current: 1
High Voltage: 1
Type: AC/DC Current
AC/DC Voltage
Range: High Current: ±500 A
High Voltage: ±600 VDC
Accuracy: High Current: 1% of FSR
High Voltage: 1% of FSR
Bandwidth: High Current: 0 ~ 50 KHz
High Voltage: 20 Hz ~ 20 kHz
Isolation: High Current: 2.5 KV @ 50 (60) HZ/1 min


Analog Output

Channels:
High Current: 1
High Voltage: 1
Type:
AC/DC Current
AC/DC Voltage
Range:
• High Current: ±10 VDC or 10 VAC
• High Voltage: ±10 VDC or 10 VAC


Power

Input Range: +10 VDC ~ +30 VDC
Consumption: 1.8 W


Mechanical

Casing: Metal
Dimensions (mm): 103 x 97 x 29 (W x L x D)
Installation: DIN-Rail Mounting


Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90% RH, Non-condensing
