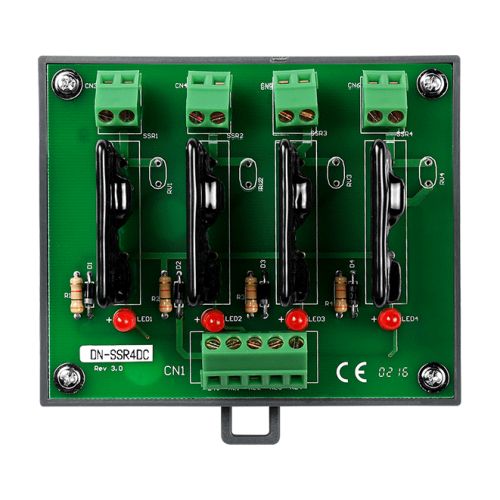

DN-SSR4DC CR, 4-ch DC-Type Form-A Solid-State Relay Board (Pitch= 5.08 mm) with DIN-rail Mounting
DN-SSR4DC CR
4-ch DC-Type Form-A Solid-State Relay Board (Pitch= 5.08 mm) with DIN-rail Mounting
Features
- 4 optically isolated digital output channels
- 4 Form A solid-state relays
- Switch up to 4A at 240 VAC (DN-SSR)
- Switch up to 4A at 50 VDC (DN-SSR-DC)
- LEDs indicate relay status
- Screw terminal for easy field wiring
- Build-in diodes to protect from wrong connection of external power supply.
- Connects directly to I-7000 modules, or ISO-730 isolated output board, ISO-C64 output board, ISO-P32C32…etc.
Introduction
The DN-SSR4 relay module can control high voltage load up to 4 A @ 240 VAC, while the DN-SSR4-DC can control DC voltage load up to 4 A @ 50 VDC. Four indicator LEDs, one for each relay, light when their associated relay is activated. Each output of DN-SSR4 equipped with a varistor that shunts the surge voltage of the inductive load or electromagnetic brake to protect the relay contact point. All relay control and relay outputs are accessible through the wiring terminals.
Applications
- On/off control
- Energy management
- Test Automation
- Process Control
Specifications
Relay Output
Channels: 4 X FORM A
Type: SSR
Contact Rating: 4 A @ 3~50VDC
Operate Time: 1/2 cycle of voltage sina wave 1ms (max)
Electrical Endurance: Long Life, No Arcing, No Bounce, No Switching Noise
Power
Consumption: 100 mA @ 24V max.
Mechanical
Dimensions (mm): 101 mm x 77 mm x 66 mm (W x L x H)
Installation: DIN-rail mounting
Environment
Operating Temperature: 0 ~ 60°C
Storage Temperature: -20 ~ 70°C
Humidity: 5% ~ 90% RH, non-condensing
