DN-DO-16DR-A CR

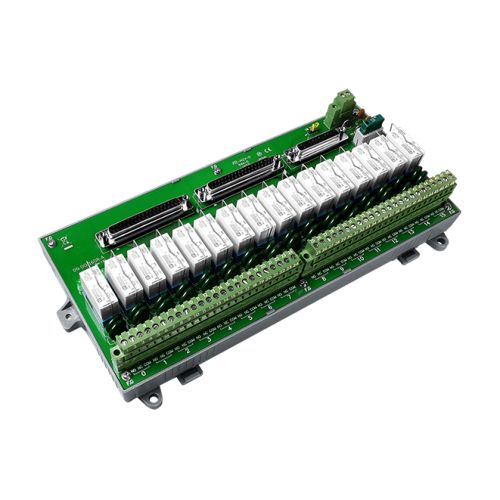

Termination board for digital output with high EMS protection and removable relay (Ch0 ~ 15)
The DN-DO-16DR-A & DN-DO-16DR-B are termination boards with relay (Form C, SPDT) output. The DN-DO-16DR-A is used for digital output channel 0~15, and the DN-DO-16DR-B is used for digital output channel 16~31. These boards offer 2 output for each channel to extend control logic due to the Form C relay, it can be positive (N.O.) or negative (N.C.) logic output or both. In addition, each channel is built-in two varistors on N.O. and N.C. channel to protect against high-voltage transients and surges to the control loop.
DN-DO-16DR-A CR: Termination board for digital output with high EMS protection and removable relay (Ch0 ~ 15) (RoHS).
Digital Output
Type: Form C Relay
Relay Contact
Contact configuration: SPDT
Rated current/Max. peak current: 6 A/10 A
Rated voltage/Max. switching voltage: 250 VAC/400 VAC
Minimum switching Load: 300 mW
Mechanical life: 20 x 10^6
Operate/release time: 8/5 ms
Relay Coil
Voltage Input: 24 VDC ± 10%
Current consumption: 400 mS@24 VDC
Varistor Protection
Max . applied voltage (Continuous): AC: 300 Vrms - DC: 385 VDC
Rated voltage: 470 Vrms
General
Dimension (W x L x H): 126.6 x 274.6 x 25.5 mm
Mounting: 35 mm DIN Rail, Wall
Operating Temperature: -25 ~ +75 °C
Humidity: 5 ~ 95 % RH, Non-condensing
