DN-DI-32DW CR ICP DAS Digital IO Modules

DN-DI-32DW CR ICP DAS

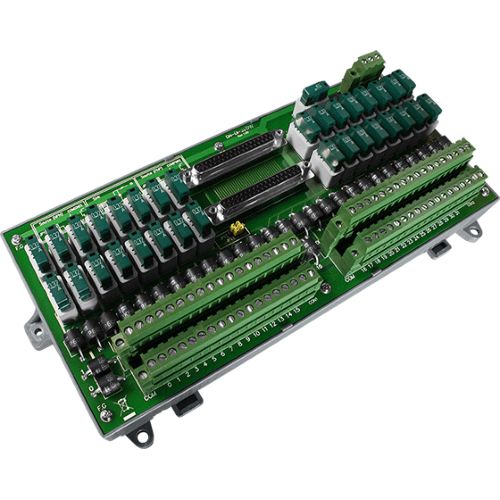

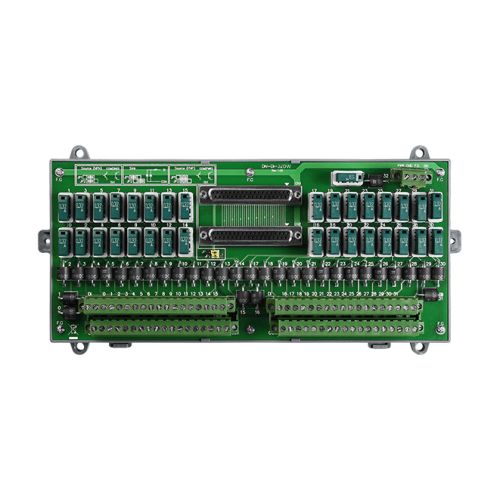

DN-DI-32DW CR

ermination board for digital input with high EMS protection and removable fuses

Quantity:

Price

€ 769,66

(VAT excluded)

€ 938,99(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 938,99

Availability: 15 business days

SKU: 94170

Model: DN-DI-32DW CR

Need Help?


The DN-DI-32DW is a termination board with EMS protection. It provides sink and source connections for comprehensive applications. Moreover, the DN-DI-32DW supports wet and dry contact to fulfill most applications. In additional, this board also offers each channel one COM pin, the benefit for users is that they need no more additional terminal block for extending COM. Furthermore, the DN-DI-32DW offers removable fuse protection for the field loops with local indication of fuse failure and overvoltage and transient protection.

DN-DI-32DW CR: Termination board for digital input high EMS protection and removabla fus (RoHS).

Digital Input

Type: *Wet contact (Current sinking/sourcing) - *Dry contact (Current sinking/sourcing)
Channels: 32
Fuse ratings: 320 mA for each channel (With physical indication)
Transient protection - Peak Power Dissipation: 3000 W
Transient protection - Peak Forward Surge Current: 250 A

General

Dimension (W x L x H): 126.6 x 274.6 x 25.5 mm
Mounting: 35 mm DIN Rail, Wall
Operating Temperature: -25 ~ +75 °C
Humidity: 5 ~ 95 % RH, Non-condensing

*Wet/Dry contact is Jumper selectable
