DN-8K32R CR

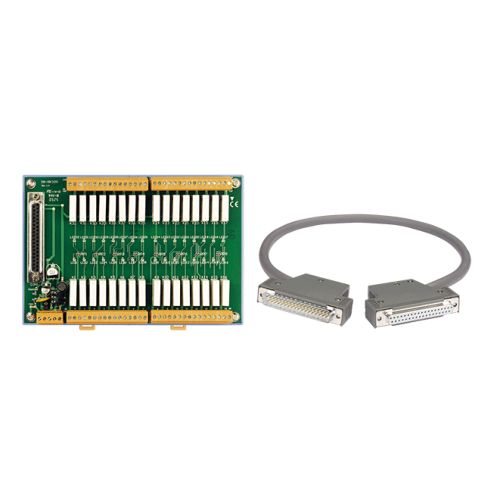

32-channel Relay (Form A, 3A) Output Board
- Form A Signal Relay
- The DN-8K32R accepts 37-pin connectors to control 32 form A relays for use with I-8041 and I-87041
- Each LED is displayed when the corresponding relay is activated
- Screw terminals for field wiring
- Power input range from +12 to +30V DC.
- Supports operating temperatures from -25 ~ +75°C
- DIN rail mount for industrial usage

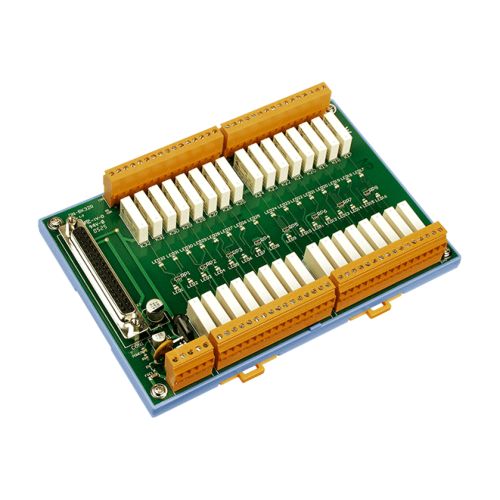

The DN-8K32R is a 32-channel of Signal Relay Output Board, consisting of 32 form A relays for efficient programmable load switching. All connectors and functionalities are compatible with the I-8041 and I-87041 Open-collector output board.
The DN-8K32R has 33 of LED indicator functions; containing 32 LED's for Relay indication status and one to display power status. To avoid overload from your PC's power supply, the boards allows a power input range of 12~30V DC.
Interface
Contact Arrangement: SPST-NO (1 form A)
Max. Switching Voltage: 125Vdc, 270Vac Rated
Contact Current: 3A
Max. Contact Current: 5A
Max. Contact Capacity: 1250VA, 150W
Operate Time (typical): 10ms
Release Time (typical): 5ms
Resistive load: 250V ac/30Vdc, 3A 100,000ops.Min (10 ops. / minute)
Resistive load: 250V ac/30V dc, 5A 6,000ops.Min (10 ops. / minute)
Mechanically: 20,000,000 ops. At no load. (300 ops. / minute)
Power input range from: +12 to +30V DC
Power consumption: +24V @0.25A. Ma
Dimensions: 118mm x 174mm
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +85°C
Humidity: 5% to 90%; non condensing
